AI-200 Developing AI Cloud Solutions on Azure Questions and Answers

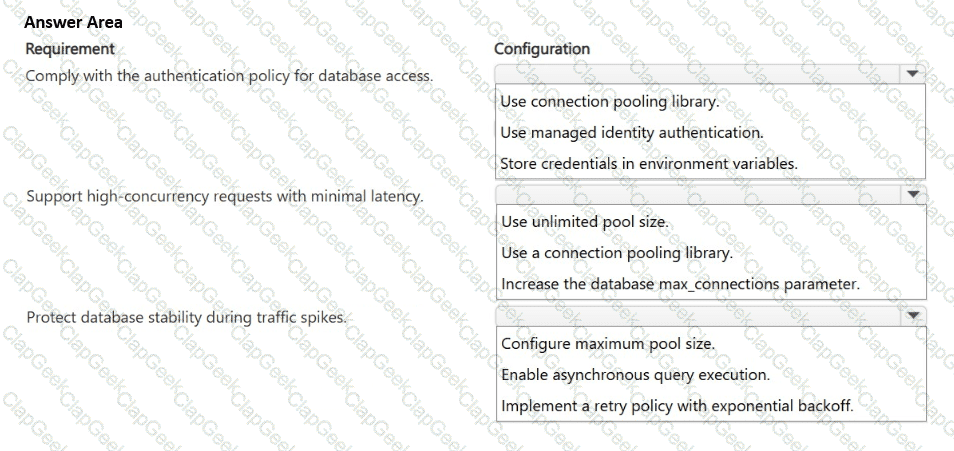

Comply with the authentication policy for database access: Use managed identity authentication.

Support high-concurrency requests with minimal latency: Use a connection pooling library.

Protect database stability during traffic spikes: Configure maximum pool size.

The Recommendation API should use managed identity authentication because Fabrikam explicitly requires service-to-database authentication without long-lived credentials. Azure Container Apps managed identities allow applications to obtain Microsoft Entra tokens at runtime and access supported Azure resources without storing usernames, passwords, or connection secrets in application configuration.

For high-concurrency PostgreSQL access, implement a connection pooling library . Azure Database for PostgreSQL documentation recommends connection pooling because repeatedly opening new database connections creates backend processes and consumes CPU and memory. Reusing existing connections reduces connection-establishment overhead and improves latency and throughput. Azure also provides PgBouncer as a built-in pooling option for Flexible Server.

To protect PostgreSQL during sudden traffic spikes, configure a maximum pool size . An unlimited pool can allow application demand to create excessive concurrent connections, which can exhaust database memory and increase contention. Microsoft warns that increasing connection counts can cause significant performance degradation and recommends conservative connection limits combined with pooling.

Therefore, the optimal configuration combines managed identity + connection pooling + bounded pool size .

Study Guide references: Azure Container Apps managed identities; Azure Database for PostgreSQL connection management; PgBouncer; connection-pool sizing and resource protection.

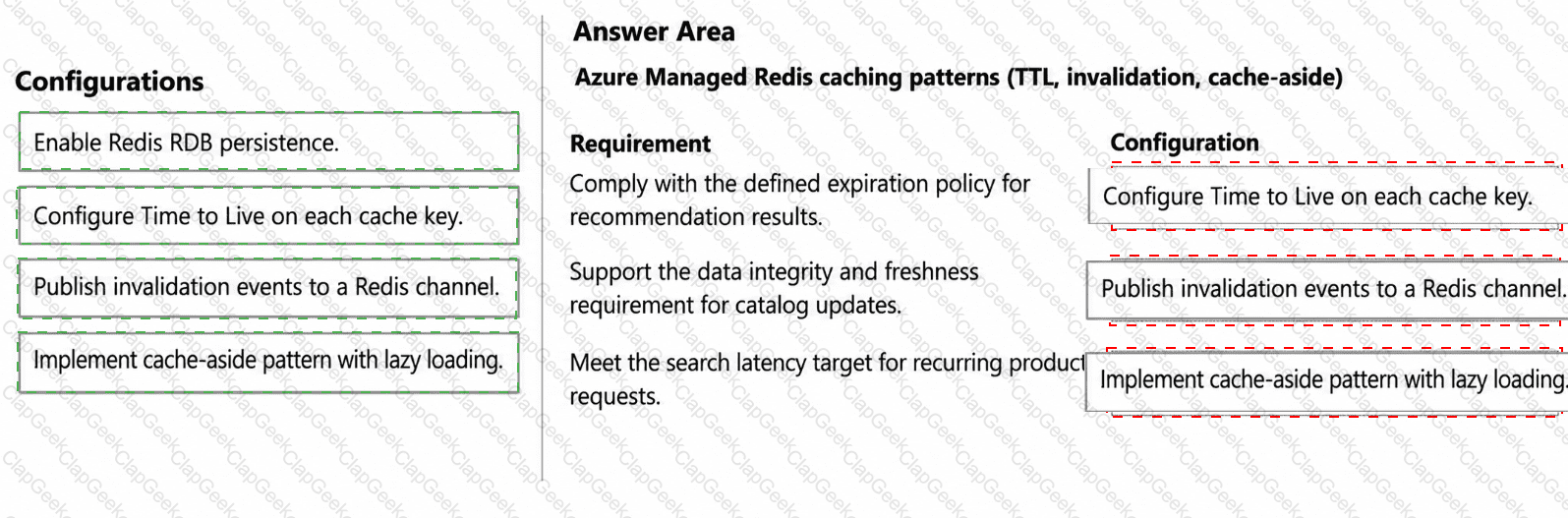

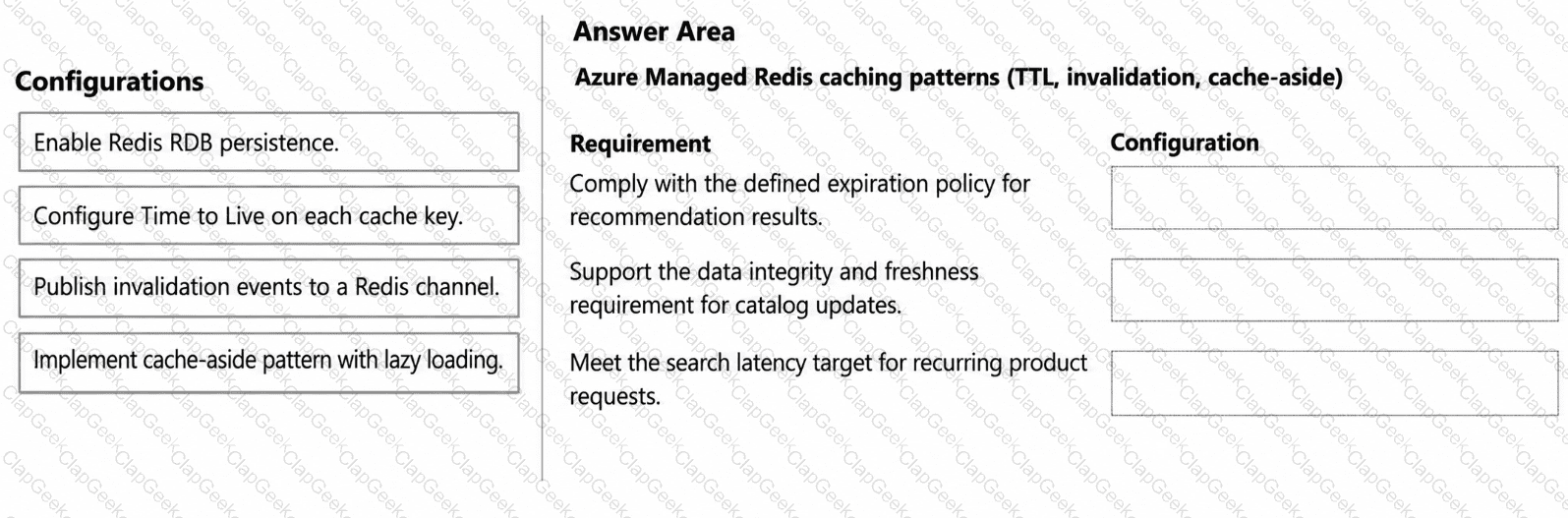

Comply with the defined expiration policy for recommendation results: Configure Time to Live on each cache key.

Support the data integrity and freshness requirement for catalog updates: Publish invalidation events to a Redis channel.

Meet the search latency target for recurring product requests: Implement cache-aside pattern with lazy loading.

The 10-minute expiration requirement should be implemented by configuring a Time to Live (TTL) on each Redis cache key. Redis automatically removes a key after its assigned expiration interval, ensuring recommendation results cannot remain cached indefinitely. Microsoft documents expiration as a standard mechanism for preventing cached data from becoming stale.

For catalog changes, Fabrikam explicitly requires a reactive invalidation mechanism . Publishing invalidation events to a Redis Pub/Sub channel allows application components to notify subscribers immediately when product metadata or pricing changes. Redis Pub/Sub broadcasts messages to channel subscribers, which can then invalidate affected cache entries instead of waiting for TTL expiration.

For repeated recommendation queries, implement the cache-aside pattern with lazy loading . The application first checks Redis; on a cache hit, results are returned from the low-latency in-memory cache. On a miss, the application retrieves data from PostgreSQL, places the result in Redis, and returns it. Microsoft identifies cache-aside as an appropriate pattern for frequently read data and explicitly notes that Azure Managed Redis provides low-latency, high-throughput access.

Redis RDB persistence is unnecessary for these requirements because the cache is an optimization layer rather than the authoritative data store.

Study Guide references: Azure Managed Redis → cache-aside pattern; TTL/expiration; Pub/Sub; cache invalidation and data freshness.

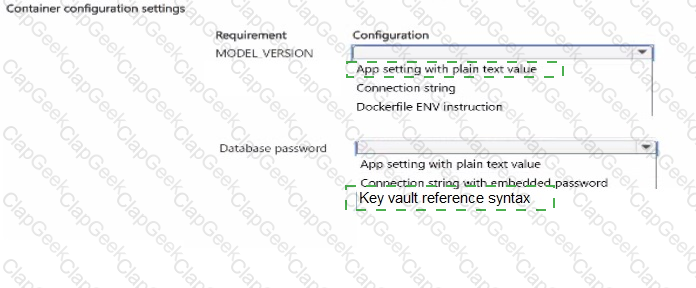

Detailed Explanation: Azure Key Vault references in App Service settings satisfy the requirement to keep secrets out of container images, source control, and directly stored application configuration. App Service resolves the referenced secret at runtime by using the app identity, so the application can consume the value as a normal setting without embedding credentials in the image. GitHub secrets are build/deployment secrets rather than a runtime App Service secret-delivery mechanism. Dockerfile ENV instructions would place secret material in the image configuration and violate the case requirements.

Study Guide Alignment: Security and operations: Key Vault, App Configuration, managed identity, OpenTelemetry, Azure Monitor, and KQL-based troubleshooting.

Official Microsoft Learn References: AI-200 Study Guide | Use Key Vault references for App Service and Functions | Managed identities for Azure resources

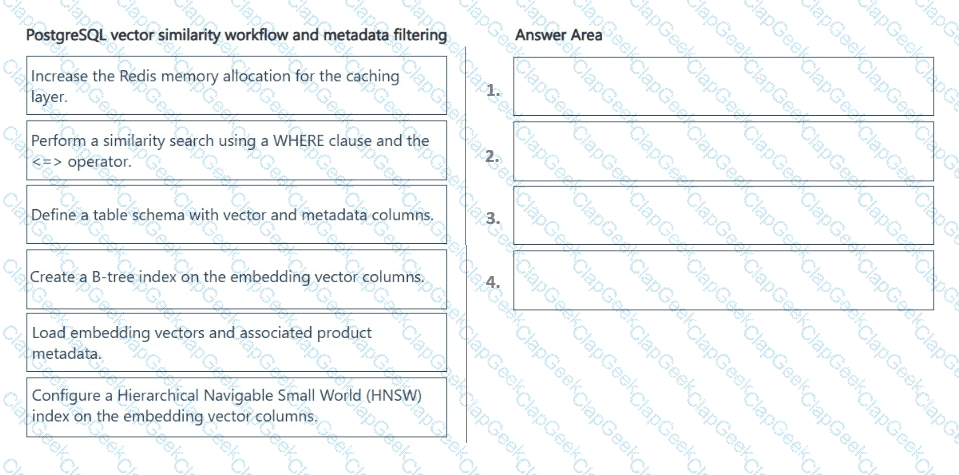

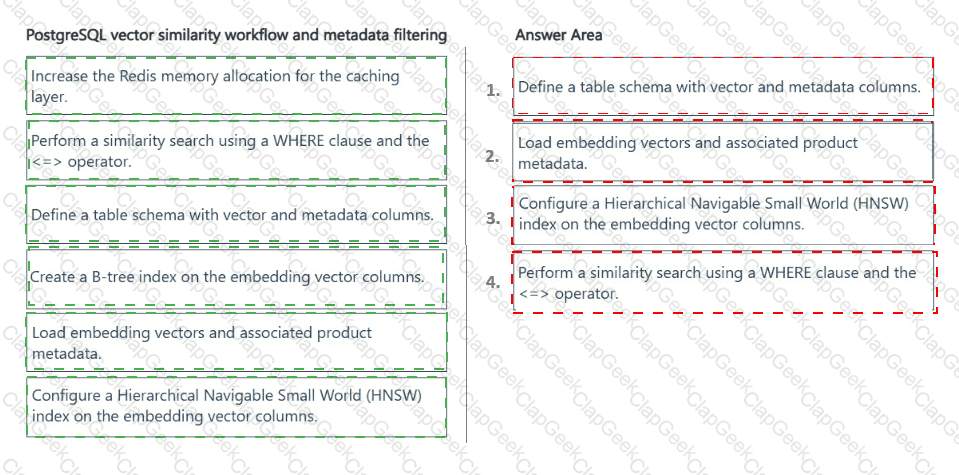

Define a table schema with vector and metadata columns.

Load embedding vectors and associated product metadata.

Configure a Hierarchical Navigable Small World (HNSW) index on the embedding vector columns.

Perform a similarity search using a WHERE clause and the < = > operator.

The workflow must first establish a PostgreSQL schema containing both the pgvector embedding column and the product metadata required for filtering. The embeddings and their associated metadata are then bulk-loaded. This ordering is important because Microsoft recommends loading data before creating vector indexes ; creating the index afterward provides faster ingestion and a more optimal index layout.

After loading, configure an HNSW index on the embedding column. HNSW is an approximate-nearest-neighbor index supported by pgvector and provides a strong speed/recall tradeoff for low-latency vector retrieval. Microsoft specifically documents HNSW for efficient cosine-distance searches in Azure Database for PostgreSQL.

Finally, execute the retrieval query so that mandatory product metadata constraints are applied through a WHERE clause , while vector similarity is evaluated with the < = > cosine-distance operator . This satisfies Fabrikam ' s requirement to calculate similarity only for eligible products.

A B-tree index is not an ANN vector index, and increasing Redis memory does not implement PostgreSQL semantic retrieval.

Study Guide references: Azure Database for PostgreSQL → pgvector, HNSW indexing, bulk-load optimization, vector similarity operators, metadata-filtered retrieval.

Use GitHub Actions because Proseware requires an automated, version-controlled deployment pipeline and explicitly prohibits local and command-line deployments. Microsoft documents GitHub Actions as a supported CI/CD mechanism for Azure Functions: a workflow stored under .github/workflows can build and deploy Function app code automatically in response to repository events such as pushes or pull requests. The Azure Functions deployment action can deploy the application package directly to the target Function app.

GitHub Actions also satisfies the infrastructure requirement. Microsoft provides first-class support for deploying Bicep templates through GitHub Actions , enabling Azure resources to be provisioned declaratively from the same source-controlled pipeline. A pull-request workflow can perform validation or Bicep what-if analysis before changes are merged, while a main-branch workflow can perform the actual deployment after approval. This provides repeatability, auditing, and separation from individual developer machines.

Azure Functions Core Tools and Azure CLI are commonly used for interactive/local deployments, which directly conflicts with the requirement to eliminate command-line deployment. Local Git deployment also fails the requirement for a centrally automated Bicep-based deployment process.

Study Guide references: Azure Functions CI/CD; GitHub Actions; infrastructure as code with Bicep; automated Azure deployments; version-controlled deployment workflows.

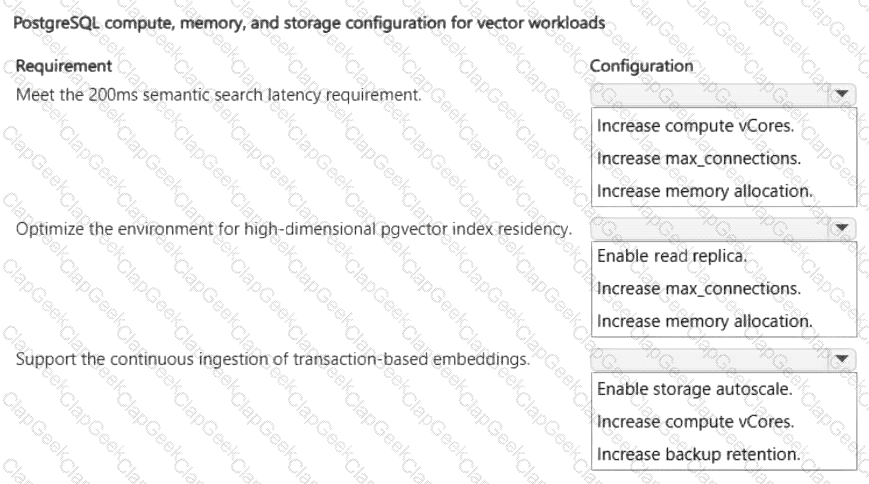

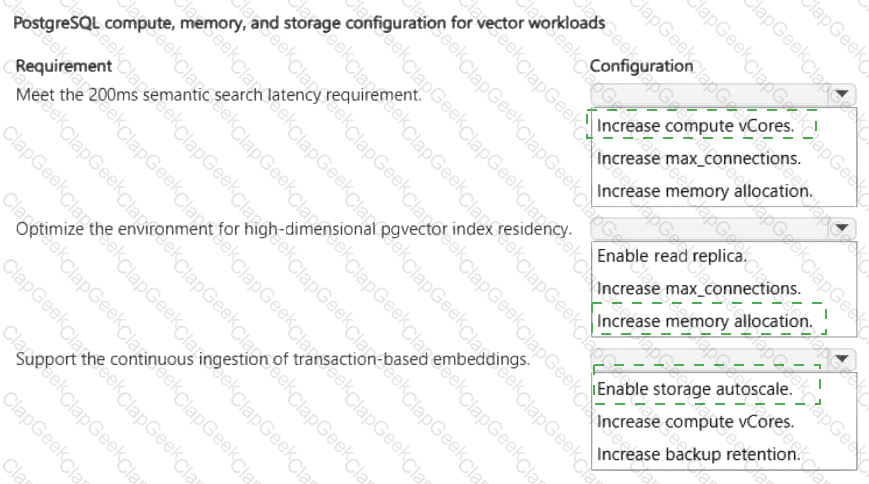

Meet the 200-ms semantic search latency requirement: Increase compute vCores.

Optimize the environment for high-dimensional pgvector index residency: Increase memory allocation.

Support the continuous ingestion of transaction-based embeddings: Enable storage autoscale.

For the strict sub-200-ms vector-search latency target, increasing compute vCores is the appropriate choice. Vector similarity operations are computationally intensive, and additional CPU capacity improves mathematical throughput and parallel query execution. Microsoft’s pgvector guidance emphasizes query-plan optimization, ANN indexes such as HNSW, and sufficient compute resources when optimizing vector workloads.

For high-dimensional pgvector index residency , increase memory allocation . HNSW provides strong query-performance characteristics but consumes more memory than IVFFlat. Keeping frequently accessed vector index structures in memory minimizes disk access and materially improves latency. Microsoft explicitly notes that HNSW requires more memory while providing a better speed/recall tradeoff.

For the continuous ingestion of millions of embeddings, enable storage autoscale . Azure Database for PostgreSQL Flexible Server can automatically increase allocated storage as capacity approaches configured thresholds, avoiding an out-of-storage condition as data volumes grow. Microsoft recommends storage autogrow for workloads whose storage demand can increase dynamically.

Increasing max_connections does not directly improve vector computation or index residency, read replicas primarily scale reads, and backup retention does not address ingestion capacity.

Study Guide references: Azure Database for PostgreSQL Flexible Server → pgvector performance optimization; compute and memory sizing; HNSW indexing; storage autogrow.

Verified Answer: Identify document changes: Change feed processor. Scale out vectorization processing: Lease container.

Detailed Explanation: The change feed processor is designed to react to inserts and updates in a monitored Cosmos DB container, which directly matches the requirement to generate embeddings for new or changed documents. Its lease container stores processing state and coordinates work across multiple workers, allowing the processing workload to scale out without duplicating ownership of change-feed ranges. A periodic full scan would consume unnecessary RUs, and neither strong consistency nor container RU throughput is the coordination mechanism for distributed change-feed workers.

Study Guide Alignment: AI data-management workloads: Cosmos DB, PostgreSQL, caching, vector storage, vector retrieval, consistency, and connection optimization.

Official Microsoft Learn References: AI-200 Study Guide | Azure Cosmos DB change feed processor

The batch embedding workload is planned to run in Azure Kubernetes Service (AKS) , and Kubernetes workloads should be defined declaratively by using YAML manifest files . Microsoft states that a Kubernetes manifest defines the desired state of cluster resources, including Deployments, Jobs, Services, ConfigMaps, and other Kubernetes objects. These manifests can then be deployed by using kubectl apply -f < manifest > .yaml.

For this case, YAML is particularly appropriate because the technical requirements emphasize repeatable, version-controlled, automated deployments . A batch vector embedding regeneration process would typically be represented as a Kubernetes workload such as a Job or another batch-oriented resource, with its configuration committed to Git alongside the rest of the deployment definitions.

kubectl run and kubectl create are imperative commands and are less appropriate for a controlled Git-based deployment model because they do not inherently preserve the complete desired-state definition as source-controlled configuration. XML is not the standard Kubernetes manifest format. az aks commands are primarily used to provision and manage the AKS cluster itself rather than declaratively define application workloads running inside the cluster.

Therefore, the correct choice is YAML-formatted Kubernetes manifest files .

Study Guide references: Azure Kubernetes Service → Kubernetes manifests; declarative deployments; kubectl apply; Git-based workload configuration.

Trigger for container images build: Base image update

Implementation of image builds: ACR Task

The correct trigger is Base image update because Proseware requires every custom container image to be rebuilt automatically whenever its Docker Hub base image changes. Azure Container Registry Tasks can detect base-image dependencies from the Dockerfile FROM instruction and automatically trigger a rebuild when that base image is updated. Microsoft confirms that ACR Tasks can track base images in public repositories such as Docker Hub and Microsoft Container Registry, as well as images stored in Azure Container Registry.

The build implementation must be an ACR Task . This directly satisfies the technical requirement that image-build automation run inside Azure Container Registry , eliminating dependencies on local developer machines or separate external build services. ACR Tasks provides cloud-based container building and can automate builds based on source-code commits, base-image updates, or scheduled triggers.

A GitHub workflow could orchestrate CI/CD, but using it as the actual image-building implementation would conflict with the explicit requirement that builds execute inside ACR. Docker Compose defines multi-container applications; it is not the native ACR build automation mechanism. A Commit trigger addresses source changes rather than the stated base-image update requirement, while Scheduled builds would introduce unnecessary periodic execution.

Study Guide references: Azure Container Registry Tasks; base-image dependency tracking; automated rebuilds; Docker Hub base-image triggers; cloud-native container builds.

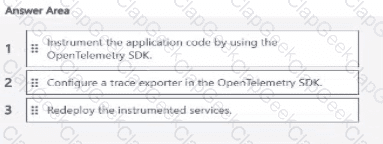

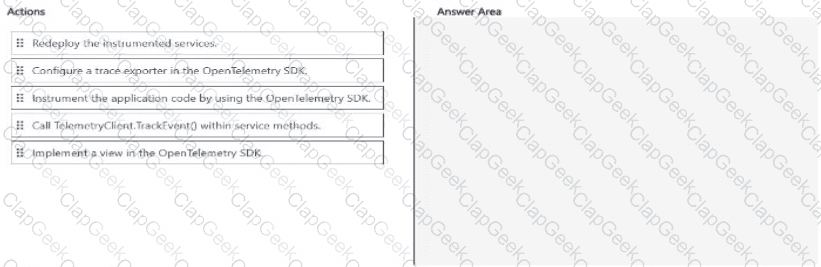

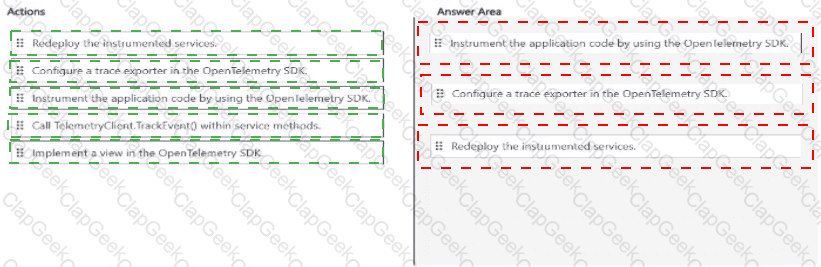

Verified Answer: 1) Instrument the application code with the OpenTelemetry SDK; 2) configure an Azure Monitor trace exporter in the OpenTelemetry SDK; 3) redeploy the instrumented services.

Detailed Explanation: Trace correlation requires the application to create OpenTelemetry spans and an exporter to send those spans to Azure Monitor. Instrumentation must therefore be present before the updated service is deployed. The previous Application Insights SDK instrumentation does not satisfy the case-study requirement that all tracing use OpenTelemetry. Configuring an OpenTelemetry view is unrelated to basic distributed-trace export, and calling TrackEvent is an Application Insights SDK pattern rather than the required OpenTelemetry approach.

Study Guide Alignment: Security and operations: Key Vault, App Configuration, managed identity, OpenTelemetry, Azure Monitor, and KQL-based troubleshooting.

Official Microsoft Learn References: AI-200 Study Guide | Enable Azure Monitor OpenTelemetry

Detailed Explanation: The objective is to reduce RU consumption from vector similarity queries. Microsoft guidance identifies vector numeric precision and vector-index selection as major cost and performance levers. Using a lower supported vector precision can reduce storage and processing cost, while quantizedFlat and DiskANN are designed to reduce latency and RU consumption compared with flat search for appropriate data sizes. Strong consistency would increase resource cost rather than solve vector-search efficiency. A regular composite index is not a substitute for the vector index. Option B should be read as reducing vector numeric precision, not changing a generic “indexing precision” setting.

Study Guide Alignment: AI data-management workloads: Cosmos DB, PostgreSQL, caching, vector storage, vector retrieval, consistency, and connection optimization.

Official Microsoft Learn References: AI-200 Study Guide | Vector search in Azure Cosmos DB | Optimize Cosmos DB vector search performance

Detailed Explanation: A readiness probe answers whether a running replica is currently ready to receive traffic. For a web-triggered order-processing service, an HTTP readiness probe can test the application endpoint and keep the replica out of the routing pool until it is able to handle requests. Liveness probes detect whether the process should be restarted, and startup probes protect slow-starting containers during initialization. A TCP readiness probe can test socket acceptance, but the HTTP readiness probe is the more application-aware choice for the HTTP service described.

Study Guide Alignment: Containerized Azure workloads: registry builds, App Service containers, Container Apps revision/scaling behavior, and AKS deployment choices.

Official Microsoft Learn References: AI-200 Study Guide | Health probes in Azure Container Apps

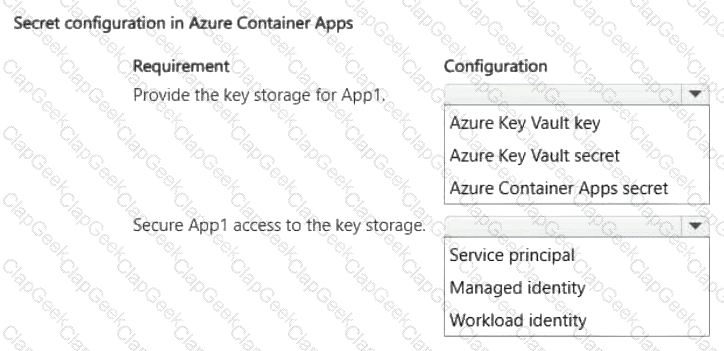

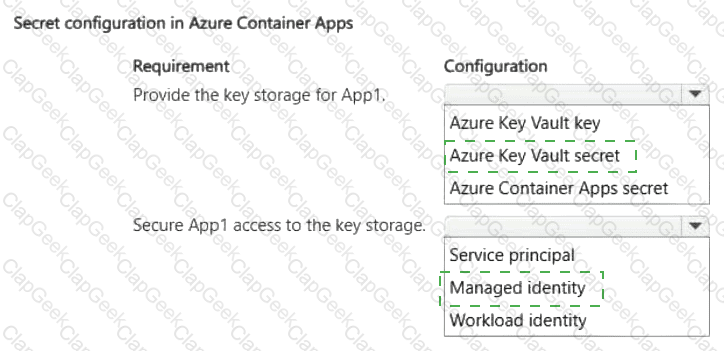

Provide the key storage for App1: Azure Key Vault secret

Secure App1 access to the key storage: Managed identity

An API access key is a sensitive string value, so it should be stored as an Azure Key Vault secret , not as an Azure Key Vault cryptographic key. Azure Container Apps supports direct Key Vault secret references , allowing sensitive values to remain centrally stored outside the container app rather than being embedded in images or supplied directly as Container Apps secret values. Microsoft recommends Key Vault references for production secrets because they provide centralized lifecycle management and avoid placing secret values directly in application configuration.

App1 should authenticate to Key Vault by using a managed identity . Azure Container Apps supports both system-assigned and user-assigned managed identities, enabling the workload to obtain Microsoft Entra tokens without maintaining client secrets or credentials. The identity must be granted appropriate Key Vault permissions, such as the Key Vault Secrets User RBAC role, to retrieve the stored secret.

This configuration also minimizes maintenance. When the Key Vault reference omits a specific secret version, Container Apps uses the latest version and automatically detects newer versions, retrieving the updated value within approximately 30 minutes.

Therefore, the required combination is Azure Key Vault secret + Managed identity .

Study Guide references: Azure Container Apps → secrets management; Key Vault references; managed identities; secret rotation and runtime retrieval.

The first troubleshooting action should be to inspect the pod events and container logs . Microsoft’s AKS troubleshooting guidance identifies Kubernetes events and application logs as primary diagnostic sources when a pod repeatedly restarts or enters states such as CrashLoopBackOff. kubectl describe pod < pod-name > exposes events including failed liveness or readiness probes, restart reasons, scheduling problems, and container termination information. kubectl logs < pod-name > provides application-level output, while kubectl logs < pod-name > --previous is particularly useful when the container has already restarted because it retrieves logs from the previous terminated container instance.

The scenario already states that node CPU and memory are normal, making node resource pressure less likely. Probe failures can instead result from incorrect probe paths, ports, timeouts, dependency checks, slow application initialization, or application errors. Microsoft specifically recommends reviewing health probe configuration and application behavior before modifying infrastructure.

Scaling replicas does not identify the root cause. Decreasing initialDelaySeconds can actually make a slow-starting application fail sooner. Draining or rebooting the node is unjustified without evidence of a node-level fault.

Study Guide references: AKS troubleshooting → Kubernetes events, container logs, liveness/readiness probes, kubectl describe, kubectl logs --previous.

Detailed Explanation: The proposed partner-topic design does not match the stated need for one publisher endpoint that can fan events into thousands of logically distinct customer topics. Event Grid domains are specifically designed to expose a single publishing endpoint while containing large numbers of topics, with subscriptions and filtering applied at the topic level. Partner topics are intended for partner-published SaaS events and do not substitute for the domain architecture required by this high-scale custom publishing scenario.

Study Guide Alignment: Azure service integration: Service Bus, Event Grid, Azure Functions triggers/bindings, and event-driven processing.

Official Microsoft Learn References: AI-200 Study Guide | Azure Event Grid event domains | Authenticate Event Grid publishing with Microsoft Entra ID

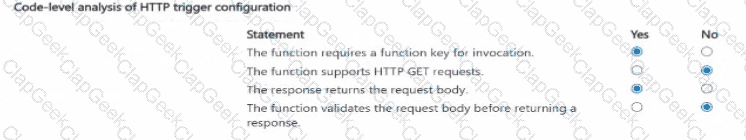

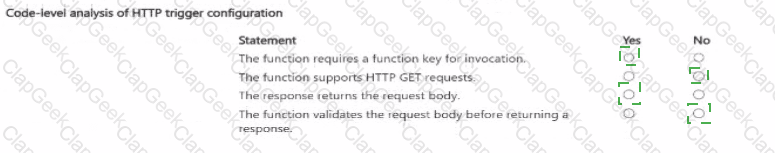

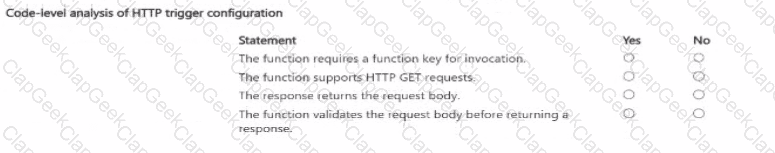

Verified Answer: Yes; No; Yes; No.

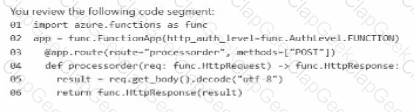

Detailed Explanation: `auth_level=FUNCTION` means invocation requires a function key unless a stronger platform authentication layer is configured, so the first statement is true. The route explicitly permits POST, not GET. The function reads `req.get_body()` and returns that value in the HttpResponse, so the response contains the request body. No schema, type, required-field, or other payload validation is performed before the response is constructed, making the final statement false.

Study Guide Alignment: Azure service integration: Service Bus, Event Grid, Azure Functions triggers/bindings, and event-driven processing.

Official Microsoft Learn References: AI-200 Study Guide | Azure Functions HTTP trigger

The query should limit the number of returned results by using TOP 5 together with ORDER BY VectorDistance(...) . Azure Cosmos DB for NoSQL provides the VectorDistance() system function for comparing a stored vector with an input query vector. Microsoft documents that a vector similarity query should order the results by VectorDistance so that the nearest matches are returned first.

A representative query is:

SELECT TOP 5

c.id,

VectorDistance(c.embedding, @embedding) AS SimilarityScore

FROM c

ORDER BY VectorDistance(c.embedding, @embedding)

Microsoft specifically recommends using a TOP N clause for vector search queries because returning more results than necessary increases RU consumption and latency. In this scenario, TOP 5 directly satisfies the requirement to return only the five most similar documents.

GROUP BY is used for aggregation and does not rank vectors by similarity. DISTINCT removes duplicate projected values but does not restrict results to the five nearest vectors. Offset pagination is unnecessary and can introduce additional query cost when only the highest-ranked five results are required.

Therefore, the correct action is to limit the number of results .

Study Guide references: Azure Cosmos DB for NoSQL → VectorDistance() ; vector search; ORDER BY ; TOP N ; RU and latency optimization.

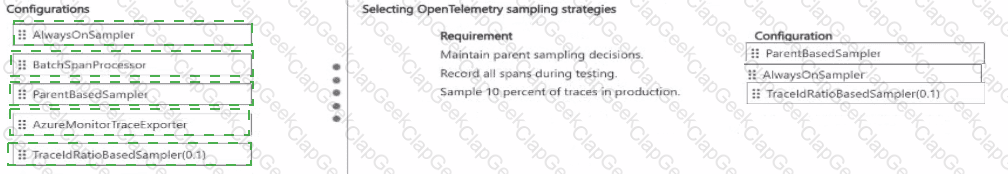

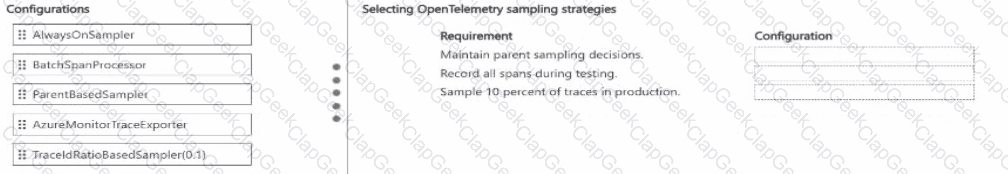

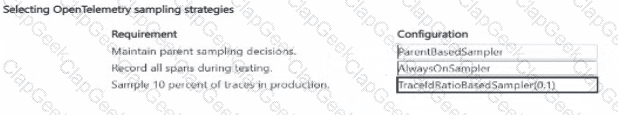

Verified Answer: Preserve parent sampling decisions: ParentBasedSampler. Capture all spans locally: AlwaysOnSampler. Sample 10% in production: TraceIdRatioBasedSampler(0.1).

Detailed Explanation: Parent-based sampling propagates the sampling decision from the upstream parent, preventing broken sampling decisions across a distributed trace. AlwaysOnSampler records every span, which is suitable for local test environments where complete trace visibility is more important than telemetry volume. TraceIdRatioBasedSampler with 0.1 selects approximately ten percent of traces based on trace identifiers, providing deterministic fixed-ratio sampling for production. A batch span processor and an exporter control processing/export, not the sampling decision itself.

Study Guide Alignment: Security and operations: Key Vault, App Configuration, managed identity, OpenTelemetry, Azure Monitor, and KQL-based troubleshooting.

Official Microsoft Learn References: AI-200 Study Guide | OpenTelemetry sampling in Azure Monitor | Enable Azure Monitor OpenTelemetry
