3V0-24.25 Advanced VMware Cloud Foundation 9.0 vSphere Kubernetes Service Questions and Answers

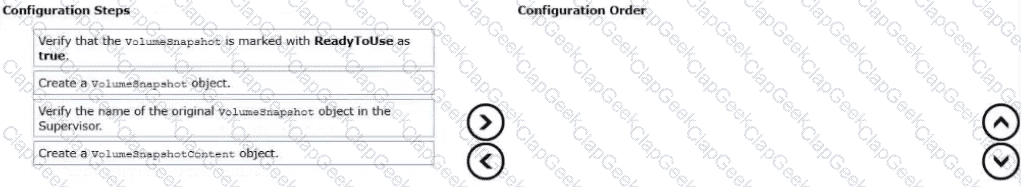

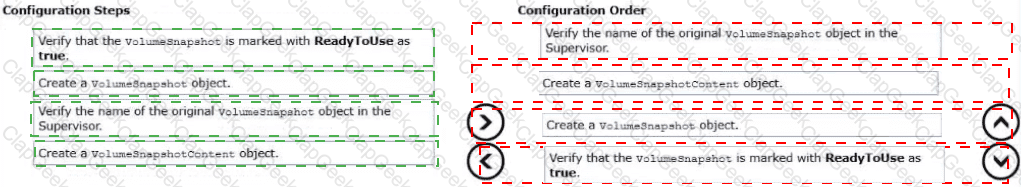

Configuration Order (in order):

Verify the name of the original VolumeSnapshot object in the Supervisor.

Create a VolumeSnapshotContent object.

Create a VolumeSnapshot object.

Verify that the VolumeSnapshot is marked with ReadyToUse as true.

Apre-provisioned snapshotworkflow means the snapshot already exists at the Supervisor/storage layer, and you are “importing” it into Kubernetes by creating the Kubernetes objects that reference it. That’s why the first step is toidentify/verify the exact snapshot nameas it exists in the Supervisor context—this is the authoritative identifier you must point to when you create Kubernetes snapshot metadata. Next, you create theVolumeSnapshotContentobject, which represents theactual snapshot on the storage backendand includes the handle/reference to that pre-existing snapshot. With the content object in place, you then create theVolumeSnapshotobject, which is theuser-facing Kubernetes object(namespaced) that binds to the pre-provisioned VolumeSnapshotContent (either explicitly or via binding rules). Finally, you validate the outcome by checking that theVolumeSnapshot shows ReadyToUse: true, confirming the binding succeeded and Kubernetes can use the snapshot for restore/clone workflows.

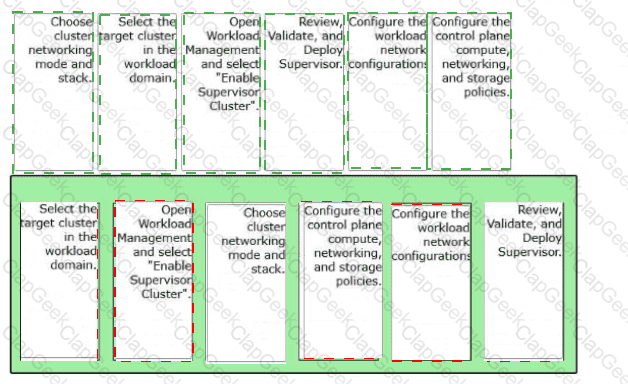

In VMware Cloud Foundation 9.0 and vSphere Supervisor architectures, the decision to deploy aSingle-Zoneor aMulti-ZoneSupervisor is made at the time ofinitial enablement. A Single-Zone Supervisor is tied to a specific vSphere Cluster. A Multi-Zone Supervisor requires a minimum of three vSphere Zones (each mapped to a cluster) to be defined before the Supervisor is deployed so that the Control Plane VMs can be distributed for high availability.

Currently, there is no supported " in-place " migration path to convert a deployed Single-Zone Supervisor into a Multi-Zone Supervisor by simply adding zones later. If an organization requires the high availability provided by a three-zone architecture, the administrator must decommission the existing Single-Zone Supervisor and then re-enable the Supervisor Service using the Multi-Zone configuration wizard. This design ensures that the underlying Kubernetes Control Plane components are correctly instantiated with the necessary quorum and anti-affinity rules that can only be established during the initial " Workload Management " setup phase.

In the context of VMware Cloud Foundation (VCF) 9.0 and the vSphere Kubernetes Service (VKS), security and compliance are integrated into the cluster lifecycle. When deploying a Tanzu Kubernetes cluster through the vSphere Supervisor, setting the parameter ENABLE_AUDIT_LOGGING=true enables the Kubernetes API Server Audit logging feature. This functionality is essential for enterprise-grade observability and security forensics, as it provides a chronological record of all calls made to the Kubernetes API server.

When this setting is active, the API server records metadata about every request, including the identity of the user or service account making the call, the timestamp, the source IP address, the type of operation (e.g., create, update, delete), and the targeted resource. This data is critical for auditing administrative actions and identifying unauthorized or malicious activity within the cluster. While secondary tools like Fluent Bit (mentioned in Option B) may be used to forward these logs to an external destination such as VMware Aria Operations for Logs, the ENABLE_AUDIT_LOGGING flag is the specific configuration that triggers the generation of this audit trail at the source. In VCF 9.0, enabling audit logs is a standard recommendation for production environments to ensure that all changes to the declarative state of the Kubernetes infrastructure are transparent and traceable, meeting various regulatory and internal security requirements.

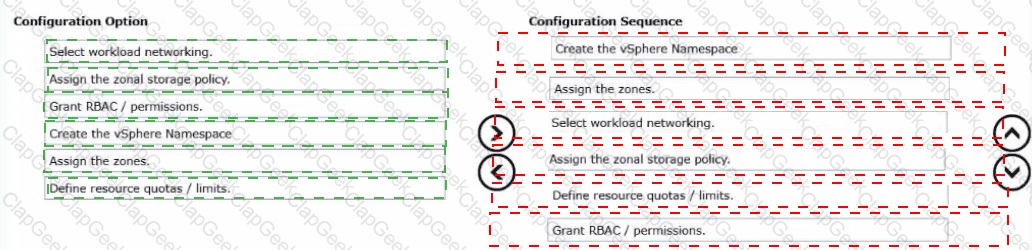

In VCF 9.0 Workload Management, avSphere Namespaceis the construct that “sets the resource boundaries” for workloads running on a Supervisor, includingCPU, memory, and storage. The documentation explicitly states that a vSphere Namespace “sets the resource boundaries forCPU, memory, storage, and also the number of Kubernetes objects that can run within the namespace.” In the operational procedure “Set Resource Limits to a vSphere Namespace,” VMware further lists the configurable limits as:CPU(“set a limit to the CPU consumption”),Memory(“set a limit to the memory consumption”), andStorage(“set a limit on the storage consumption… per storage policy that is used”).

By contrast,Containersare not a namespace “resource limit” category; VMware documents “Container Defaults” separately (defaults for container CPU/memory requests and limits) rather than a top-level resource limit type. Similarly,Servicesare governed under “Object Limits” (how many Kubernetes objects like Services can exist), which is distinct from resource limits. Therefore, the three resource limitations defined on a vSphere Namespace areCPU, Memory, and Storage.

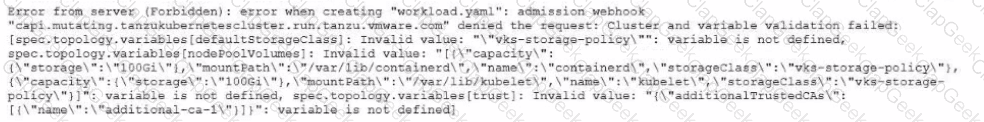

The error shows an admission webhook denial wherevariable validation failedand multiple entries under spec.topology.variables[...] are reported as“variable is not defined”. That message indicates the manifest is supplying variables that arenot part of the current Cluster API / topology schemaenforced by the Supervisor during cluster creation. In VKS, cluster provisioning isdeclarative: you invoke the VKS API withkubectl + a YAML file, and “after the cluster is created, you update the YAML to update the cluster.” When the API/schema changes between releases, older manifests can contain fields/variables that are no longer recognized, and the admission webhook blocks them to prevent creating an invalid cluster spec.

This aligns with VMware’s broader direction that the olderTanzuKubernetesCluster (TKC) API was deprecatedand customers are encouraged to useCluster APIfor bootstrap/config/lifecycle management. In practice, to complete the upgrade/creation successfully, you must update the cluster manifest to match the supported schema:remove the deprecated/unknown topology variablesshown in the error (for example, the undefined storage-policy and trust variables) and re-apply the correctedworkload.yaml.

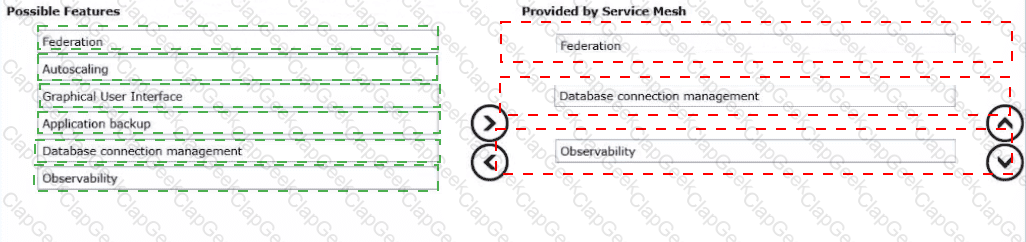

A Global Namespace in a service-mesh-driven, multi-cluster design is fundamentally anorganizational and policy boundarythat lets platform teams treat multiple Kubernetes namespaces—across multiple clusters/regions—as one logical application domain. That is whyBis correct: it defines an application boundary spanning clusters, which is exactly what “GovApp” needs when its tiers are distributed across regions but must still behave as one application. It also explains whyAis correct: the value of a Global Namespace is that you can applyconsistent identity, security, and traffic policiesacross all member namespaces and clusters, rather than configuring them separately per cluster. This supports uniform mTLS/authorization posture, consistent service-to-service access rules, and standardized routing behaviors regardless of where a service instance runs.

The other options describe outcomes that may be enabled by additional service-mesh features, but they are not the corerequirementsthat define a Global Namespace: distributed ingress/egress is not guaranteed simply by the namespace construct, automatic workload placement is typically handled by schedulers/placement engines rather than the namespace boundary, and centralized logging is an observability capability outside the namespace requirement itself.

VCF 9.0 explicitly states: “The VKS exposes three layers of controllers to manage the lifecycle of a VKS cluster,” and then enumerates those layers. The first layer is the set of components that integrate the workload cluster with Supervisor-backed resources, including aCloud Provider Plug-inthat integrates with the Supervisor and enables infrastructure integrations such as persistent volume requests being passed to the Supervisor (which is integrated with Cloud Native Storage). The second layer isCluster API, described as providing “declarative, Kubernetes-style APIs for cluster creation, configuration, and management,” driven by resources that represent the cluster, the VMs making up the cluster, and cluster add-ons. The third layer is theVirtual Machine Service, which provides a declarative API for managing VMs and associated vSphere resources and is used to manage the lifecycle of the control plane and worker node VMs hosting a VKS cluster.

Therefore, optionAis the only answer that matches the three lifecycle controller layers defined in the VCF 9.0 documentation.

Harbor reduces the risk of running vulnerable or tampered images primarily throughvulnerability scanningandimage signing.Vulnerability scanning (E)detects known CVEs in image layers (OS packages and application dependencies, depending on the scanner configuration). This allows teams to identify—and gate the use of—images that contain high/critical vulnerabilities before those images are deployed to Kubernetes clusters. Enforcing scanning as part of the image promotion process helps prevent outdated images with known CVEs from being pulled into production.Image signing (A)provides integrity and provenance controls by enabling consumers to verify that an image was produced and approved by a trusted publisher and has not been altered. When combined with admission controls/policies (for example, only allowing signed images from specific projects), signing helps block unauthorized or unapproved images from being deployed, which is critical when the incident involves exposed internal APIs and supply-chain risk.

The other choices do not directly prevent recurrence:automatic image update (B)is not a core Harbor registry control,deploy both container and VM images (C)is a content capability rather than a security control, andautomatic image validation (D)is not a standard Harbor registry capability distinct from signing/scanning.

In a Kubernetes-based architecture like the vSphere Kubernetes Service (VKS) within VMware Cloud Foundation (VCF) 9.0, a StorageClass manifest serves as the definition for dynamic volume provisioning. The provisioner field is the mandatory attribute that determines which specific volume plugin or driver is invoked to create the underlying storage resource. In the provided exhibit, the string provisioner: kubernetes.io/aws-ebs specifies that the AWS Elastic Block Store (EBS) driver is the orchestrator for the lifecycle of the volumes associated with this class.

In a standard on-premises VCF 9.0 deployment, the provisioner field typically points to csi.vsphere.vmware.com, identifying the vSphere Container Storage Interface (CSI) driver. This driver acts as the translator between Kubernetes PersistentVolumeClaims (PVCs) and vSphere’s Cloud Native Storage (CNS) layer. The other fields in the manifest serve supporting roles: name provides a reference for the StorageClass, parameters (such as type: gp2) pass configuration-specific details to the driver, and reclaimPolicy determines what happens to the data once a claim is deleted. However, only the provisioner field defines the " who " of the operation—the actual software driver responsible for communicating with the storage array or cloud provider to provision the physical or virtual disk. Understanding this distinction is critical for administrators managing hybrid-cloud workloads where different provisioners are used across diverse infrastructure backends.

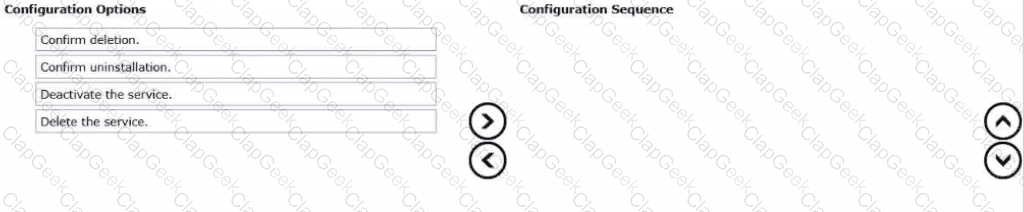

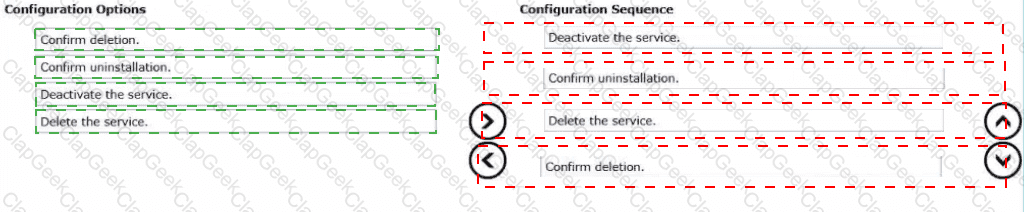

Configuration Sequence (in order):

Deactivate the service.

Confirm uninstallation.

Delete the service.

Confirm deletion.

Uninstalling a Supervisor Service cleanly follows a “stop/remove/cleanup” pattern to avoid orphaned components and to ensure the Supervisor isn’t still reconciling the service while you remove it. First, youDeactivate the serviceso the Supervisor stops managing and running the Harbor service components. This prevents new service resources from being created while you are attempting to remove them and allows the platform to transition the service into a non-operational state safely.

Next, youConfirm uninstallationto initiate the removal workflow. This step acknowledges that the service’s deployed components (such as pods, controllers, and any associated objects) will be removed from the Supervisor-managed environment. After the uninstall workflow is initiated and the service is no longer active, you proceed toDelete the serviceto remove the Harbor service registration/entry from the Supervisor Services list, ensuring it is no longer available to namespaces or consumers. Finally, youConfirm deletionas the last safeguard, since deletion is typically destructive and removes the service definition from the environment’s available services catalog.

VCF 9.0 design guidance for theSupervisor NSX Load Balancer modelstates that theNSX load balancers run on NSX Edges, and sets explicit sizing requirements at theEdge nodelevel. In the “NSX Load Balancer Design Requirements,” VCF 9.0 requires that theNSX Edge cluster must be deployedbecause “NSX Load Balancers run on NSX Edges.” It further requires that“NSX Edge nodes must be deployed with a minimum of Large form factor”because NSX load balancers havefixed resource allocations on NSX Edge nodes, and the Large form factor is needed to accommodate basic system and workload needs.

This directly ties “deployment size” of the load balancer service capacity to theEdge node form factor(Small/Medium/Large, etc.) rather than the number of pods or the number of clusters. The document also notes that if additional load balancers are required, NSX Edges can bescaled up or out, again reinforcing that sizing is anEdge nodesizing decision.

Istio is available in VCF 9.0 as an optional package that can be installed for VKS clusters. The VCF 9.0 documentation explicitly lists “Istio” among the optional packages that “can be optionally installed” for the vSphere Kubernetes Service (VKS). In Kubernetes platforms, Istio is a service mesh that secures and manages service-to-service (east-west) traffic by establishing authenticated and encrypted connections between workloads. The encryption mechanism it provides for inter-service communication ismutual TLS (mTLS), which means both ends (client and server workloads) authenticate each other and negotiate encrypted transport for every service call—meeting the requirement to “encrypt the transport and communications between services.” This is distinct from host-level mechanisms like IPsec/IKEv2 (network-layer) or “AES-256” (an algorithm, not the service-to-service transport model). Enabling Istio Service Mesh is therefore aligned to deliver encrypted, identity-aware service communications across the cluster at the application service layer.

In VCF 9.0, cluster autoscaling is delivered as anoptionalcapability that requires installing theCluster Autoscaleras a standard package. The VCF 9.0 materials explicitly call out Cluster Autoscaler as an optionally installed package for vSphere Kubernetes Service, alongside other optional packages (for example, Harbor, Velero, Istio, etc.). The release information further emphasizes that autoscaling features (including newer behaviors such as scaling from/to zero for supported VKr versions) require that “the autoscaler standard package” be installed.

Operationally, installing the autoscaler package provides the controller that watches pending pods and node utilization signals and then drives the required changes in desired worker capacity. After that controller is present, you typically express scaling intent through the cluster’s declarative configuration (for example, worker pool/node pool constraints and limits) so the autoscaler can act within the boundaries you define. Without the autoscaler package, changing replica counts or expecting automatic node growth/shrink will not produce autoscaling behavior because the control loop that performs those actions is missing.

Harbor is used as aprivate registry serviceto store and distribute container artifacts for Kubernetes consumption, which is exactly what’s needed for a multi-tenant platform where multiple teams require isolated repositories. The VMware documentation treats Harbor as aVMware Tanzu Harbor Registry service, including governance around who can operate it and how teams are separated intoprojects(a key multi-tenancy boundary). For example, vSphere privileges explicitly cover the ability tocreate or delete a Harbor registryand tocreate, delete, or purge Harbor registry projects, reinforcing that Harbor is operated as a managed registry with project-scoped administration and access control.

In practice for regulated environments, the registry role is not just storage—Harbor is commonly used to enforce enterprise controls likepolicy-driven access (RBAC), and it supports security capabilities such asimage vulnerability scanningandimage trust/signing, which directly address the requirement to prevent unsafe images from being promoted or deployed.

Cluster API (CAPI) is a foundational Kubernetes sub-project integrated into VMware Cloud Foundation (VCF) 9.0 via the vSphere Kubernetes Service (VKS) . It is designed to bring declarative, Kubernetes-style APIs to cluster creation, configuration, and management. In a VCF environment, the vSphere Supervisor acts as the " Management Cluster, " utilizing CAPI to automate the entire lifecycle of workload clusters (formerly known as TKG clusters).

Instead of requiring manual infrastructure provisioning, CAPI allows administrators to define the desired state of a Kubernetes cluster—including its version, node count, and underlying hardware resources—using YAML manifests. The vSphere Kubernetes Service then works to reconcile the current state of the infrastructure with this defined desired state. This transition to declarative management is a core component of VCF 9.0, as it enables " Kubernetes-on-Kubernetes " orchestration. This ensures that Day 1 operations (deployment) and Day 2 operations (scaling, patching, and upgrading) are consistent, repeatable, and less prone to human error. While other options describe components like cert-manager (Option A), Container Network Interfaces (Option C), or vulnerability scanners (Option D), only Option B accurately identifies CAPI’s role as the engine for automated, policy-driven cluster lifecycle management within the VMware SDDC stack.

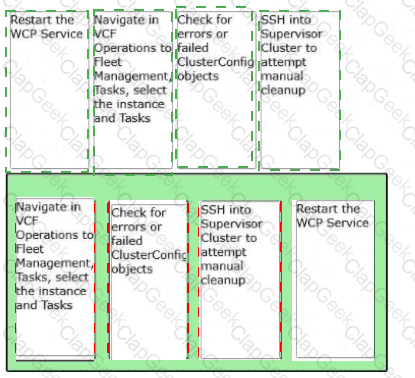

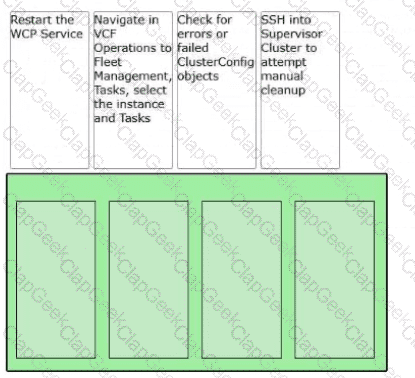

Answer (Correct Order):

Navigate in VCF Operations to Fleet Management → Tasks, select the instance and review Tasks

Check for errors or failed ClusterConfig objects

SSH into the Supervisor Cluster to review logs / attempt manual cleanup if required

Restart the WCP Service

To determinewhya Supervisor upgrade failed, you start where the platform records the most actionable failure context: themanagement-plane task history. The Fleet/Task view surfaces the upgrade workflow steps, timestamps, and the specific operation that failed, which gives you the fastest pointer to the failing phase (precheck, image staging, reconciliation, add-on updates, etc.). Next, you validate the Kubernetes-side reconciliation state by checking forfailed ClusterConfigobjects, because Supervisor enablement/upgrade actions commonly drive configuration via controller reconciliation; a failed ClusterConfig often contains the clearest “reason” and “message” fields that explain what blocked progress (validation errors, dependency issues, unreachable endpoints, incompatible components).

If the management-plane/task view and ClusterConfig status still don’t isolate the root cause, the next escalation is toSSH into the Supervisorto inspect component logs/events and identify low-level failures that may not bubble up cleanly (for example, admission failures, controller crashes, or connectivity/auth issues). Finally,restarting WCPis a remediation step that can clear stuck states, but it’s placed last because it can alter evidence and should not be your first action when you’re still trying to identify the original failure cause.

In VMware Cloud Foundation (VCF) 9.0, the integration of ExternalDNS within the vSphere Kubernetes Service (VKS) simplifies the management of DNS records for containerized applications. ExternalDNS is a Kubernetes add-on that automates the synchronization of exposed Kubernetes resources with external DNS providers (such as AWS Route53, Azure DNS, or corporate Infoblox). Within a VKS cluster, the two primary resources that trigger the creation of these records are Kubernetes services and Contour HTTPProxy objects.

When a developer creates a Kubernetes service of type `LoadBalancer`, ExternalDNS watches for the assigned external IP address or hostname provided by the vSphere infrastructure. It then automatically creates a corresponding A or CNAME record in the configured DNS zone. Similarly, because VKS often utilizes Contour as its ingress controller, the Contour HTTPProxy custom resource is also a supported source. When an HTTPProxy is defined with a specific FQDN (Fully Qualified Domain Name) for application routing, ExternalDNS detects this desired state and ensures the external DNS provider is updated to point to the Envoy proxy ' s entry point. This automation eliminates the need for manual DNS entry creation, which is often a bottleneck in DevOps workflows. While pods and nodes (Options B and E) have internal cluster DNS entries via CoreDNS, they do not typically drive the creation of external, publicly resolvable records through the ExternalDNS controller.

---

VKS cluster lifecycle is managed using adeclarative API: you usekubectl with a YAML fileto specify the desired state of the cluster (for example: “how many nodes,” Kubernetes version, sizing, and storage). After the cluster is created, youupdate the YAMLto update the cluster. This is why the correct operational approach is to modify the cluster manifest (cluster.yaml) rather than deleting and redeploying.

Additionally, VKS uses multiple controller layers, whereCluster APIand theVirtual Machine Serviceare responsible for provisioning and managing the lifecycle of the control plane and worker node VMs that make up the VKS cluster. In other words, when you change the declared state for control plane sizing/replica count in the cluster YAML, the platform reconciles to that new state by adjusting the underlying control plane VMs through the supported controllers, instead of requiring disruptive “tear down and rebuild” operations.

So, editing the cluster.yaml to adjust the control plane replica count is the method that matches the documented VKS declarative operations model and controller-driven reconciliation.

VCF 9.0 distinguishes betweenbacking up the Supervisor control planeandbacking up workloadsthat run on the Supervisor, includingvSphere Pods. In the “Considerations for Backing Up and Restoring Workload Management” table, the scenario “Backup and restore vSphere Pods” explicitly lists the required tool as“Velero Plugin for vSphere”, with the guidance to “Install and configure the plug-in on the Supervisor.”

The same document is explicit thatstandalone Velero with Restic is not valid for vSphere Pods, stating: “You cannot use Velero standalone with Restic to backup and restore vSphere Pods. You must use the Velero Plugin for vSphere installed on the Supervisor.”

vCenter file-based backup is documented for restoring theSupervisor control plane state, not for backing up and restoring vSphere Pod workloads themselves. Therefore, to meet the requirement to protect third-party applications running asvSphere Pods, the architect should propose theVelero Plugin for vSphere.

In VCF 9.0 Workload Management, workload backup for VKS clusters (and vSphere Pods) is performed using Velero, specifically theVelero Plugin for vSpherefor Supervisor/VKS scenarios. The documentation describes that you must firstprovide an S3-compatible object storeas part of installing and configuring the Velero Plugin for vSphere, because backup data (Kubernetes metadata and volume snapshot data movement) relies on object storage rather than “namespace storage.” The backup workflow further indicates that when you create a backup, the system uploadsKubernetes metadata to the object store, and persistent volume snapshot handling is coordinated through the plugin components (Snapshot/Upload custom resources).

Therefore, the correct configuration pattern is to point Velero’s backup target (BackupStorageLocation) at anS3-compatible object storeendpoint so metadata and snapshot payloads have a durable destination. This aligns with the documented prerequisite that object storage is required to enable backup/restore operations for persistent workloads, and it is the mechanism Velero uses to store backup artifacts for later restore operations in VKS environments.

Amulti-zone Supervisorin VCF 9.0 is designed to deliverplatform resiliency and high availability at the vSphere cluster (zone) failure-domain level. The VCF 9.0 documentation states that a multi-zone Supervisor “leverages three vSphere clusters” (each mapped to a vSphere Zone) and that these zones are used by both “workloads and Supervisor management components to deliver high availability,” exposing “each cluster as an independent, consumable availability zone,” resulting in a “resilient, HA-capable platform.”

This is reinforced in the vSphere Zones guidance: deploying the Supervisor onthree vSphere Zones spreads the control plane VMs across three zones, providing “cluster-level high availability” that protects the Supervisor control plane against asingle cluster-level failure(one control plane VM per management zone).

Because VKS (vSphere Kubernetes Service) runs on Supervisor, distributing Supervisor control plane and workload placement across zones improves overall availability of Supervisor services and Kubernetes consumption in that Supervisor instance.
