3V0-21.25 Advanced VMware Cloud Foundation 9.0 Automation Questions and Answers

The Provider Management Portal in VCF 9.0 is the centralized interface where the cloud provider administrator manages all foundational infrastructure. When creating a Region, the administrator must select from the infrastructure already integrated into the VCF Automation appliance. By navigating to the infrastructure or "Cloud Accounts" section within the Provider Management Portal, the administrator can see the status of all vCenter Server and NSX Manager connections. This portal provides the "provider-view" of the entire fleet, allowing the admin to verify which vCenter instances are currently healthy, licensed for VCF 9.0, and have the Supervisor enabled. This step is critical because a Region cannot be successfully created if the underlying vCenter connection is down or the integration is incomplete. The Organization Portal, by contrast, is a tenant-facing interface and does not have the visibility into the global infrastructure required to perform these "Day 0" provider setup tasks.

VCF 9.0 introduces enhanced security requirements for Operations Orchestrator integration, specifically regarding the execution of custom extensibility logic. A common cause for a workflow failing to trigger, even when the provisioning process itself is successful, is that the workflow is not signed. By default, VCF 9.0 Automation enforces a security policy that requires all custom workflows to be digitally signed by a trusted certificate before the Event Broker Service (EBS) will execute them. This prevents unauthorized or malicious scripts from running within the management plane of the private cloud. If the workflow is not signed, the EBS will silently ignore the trigger or log a security violation in the background, while the main VM provisioning—which is a separate process—continues to completion. The administrator must import the developer certificate into the Orchestrator and sign the workflow package to authorize its execution in the production environment.

VCF 9.0 Automation uses a decentralized identity architecture to support complex multi-tenant requirements. To ensure that the Provider Management Portal and Organizations use different source directories (e.g., the provider uses a management AD while tenants use their own OIDC/SAML IdPs), the administrator must Deploy an Identity Broker cluster per organization. The Identity Broker acts as the localized gateway for authentication for that specific tenant. To prevent Organization administrators from modifying these settings—satisfying the second requirement—the provider must Ensure that "Do not use LDAP" is configured for the organization's standard SSO settings. This configuration forces the organization to rely exclusively on the broker-mediated IdP managed at the provider level, effectively "locking" the identity configuration and preventing local tenant admins from reverting to a manual LDAP setup that might bypass corporate security policies or the centralized identity strategy.

To meet the requirement for self-service networking that supports both VMs and Kubernetes (K8s) within a VPC framework, the administrator must deploy an AllApps Organization. In VCF 9.0, the VMApps model is restricted to traditional vSphere-backed networking and does not support the native VPC construct required by the team. By choosing AllApps, the administrator can utilize the Default VPC provided during the Region-to-Organization mapping. This VPC is governed by VPC Connectivity Profiles, which allow the administrator to define how the organization handles traffic—for instance, allowing the development team to manage their own SNAT/DNAT rules and load balancers for ingress control while maintaining the security guardrails set by the provider. This specific combination of the AllApps Organization type and VPC-centric networking is the only way to provide the requested level of flexibility for "modern" developers who need to manage their own application networking stack alongside their containerized and virtualized services.

In VMware Cloud Foundation 9.0, multi-tenancy is structured around the concept of Organizations. To meet the requirement of hosting multiple companies within a single private cloud with strict segregation and governance, the administrator must utilize the VMApps Organization model. Unlike the AllApps model, which is highly optimized for modern containerized and VPC-driven workloads, the VMApps Organization is specifically designed for environments requiring traditional VM-centric segregation and access control while sharing underlying physical infrastructure. Enabling a Supervisor cluster on the vCenter instance is a foundational prerequisite for these advanced automation capabilities. The Supervisor provides the necessary integration between the vSphere compute layer and the VCF Automation control plane, allowing for the instantiation of the Namespace and Organization constructs that enforce RBAC and resource quotas. By configuring a VMApps Organization per company, the administrator ensures that each tenant has a distinct administrative boundary, private catalog, and isolated resource allocation, effectively satisfying the requirements for hard tenancy within a consolidated private cloud environment.

Velero is the industry-standard and VMware-supported service integrated into VCF 9.0 for the backup and restoration of Kubernetes-based workloads, specifically vSphere Pods and persistent volumes. Within the VCF Automation framework, Velero is often deployed as part of the Supervisor services or within TKG clusters to provide data protection for stateful applications. It captures the state of the Kubernetes API objects (such as Pod specs and Secrets) and triggers snapshots of the underlying vSphere storage (via the Cloud Native Storage/CNS driver) to ensure that workloads can be recovered in the event of a cluster failure or accidental deletion. While other services like ArgoCD handle continuous delivery and VKS handles cluster lifecycle, only Velero is dedicated to the operational task of disaster recovery and migration of containerized resources within the vSphere Supervisor environment.

To meet the comprehensive requirements of monitoring, anomaly detection, and policy enforcement in VCF 9.0, a combination of integrated networking and security tools is used. NSX Traceflows provide the deep visibility needed to monitor IP space utilization and troubleshoot connectivity at the packet level, allowing administrators to visualize the path traffic takes through the virtual and physical fabric. Integrated Security with VCF Operations (formerly part of the Aria suite) provides the management dashboard for detecting network anomalies by correlating flow data and identifying traffic patterns that deviate from established baselines. Finally, vDefend (the integrated NSX security stack) is essential for enforcing consistent network policies through distributed firewalls (DFW), gateway firewalls, and IDS/IPS capabilities. Together, these three capabilities ensure that the VCF environment remains secure, transparent, and compliant with corporate governance standards, providing the "closed-loop" operational model required for modern private clouds.

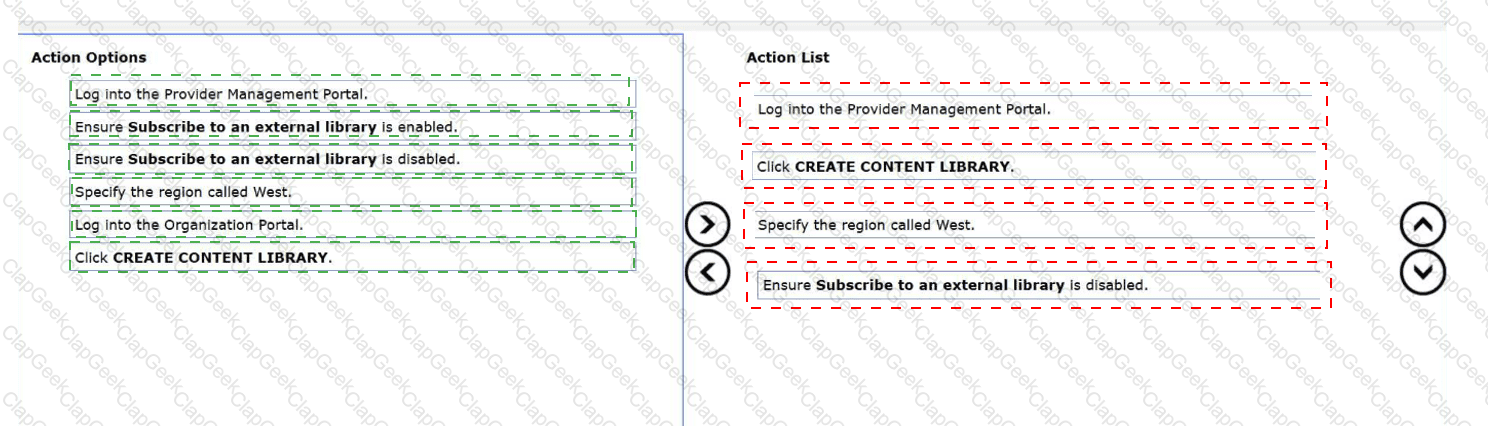

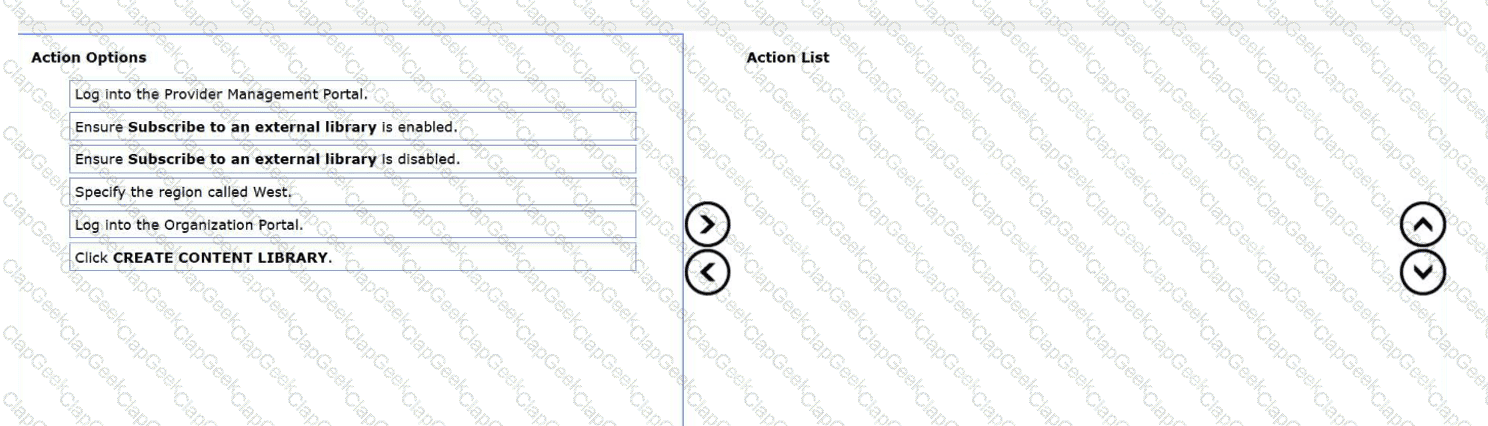

Log into the Provider Management Portal.

Click CREATE CONTENT LIBRARY.

Specify the region called West.

Ensure Subscribe to an external library is disabled.

In VMware Cloud Foundation (VCF) 9.0, the Provider Management Portal is the centralized interface used by cloud providers to manage global infrastructure and shared resources across the entire fleet.

To satisfy the requirements:

Administrative Context: The task of creating global resources like a provider-level content library is a "Day 0/1" infrastructure task, which must be performed in the Provider Management Portal rather than a tenant-specific Organization Portal.

Regional Association: VCF 9.0 uses Regions to logically group underlying vSphere and NSX resources. Associating the library with the West region ensures that the templates and ISOs within that library are specifically available for workloads deployed into that regional infrastructure.

Local vs. Subscribed: A Local Content Library is one where the provider directly uploads and manages the content. The requirement specifies a local configuration; therefore, the option to Subscribe to an external library must be disabled. If it were enabled, the library would instead attempt to synchronize content from a remote URL (such as a public VMware repository or another VCF instance).

Once created, this library acts as a "golden repository" that the provider can then share with multiple tenant organizations, ensuring consistency across the private cloud fleet.

In a multi-zone Supervisor cluster environment in VCF 9.0, achieving high availability across zone failures requires the use of topology-aware storage. Standard storage classes do not inherently understand the physical boundaries of vSphere zones. By attaching a Supervisor-based, topology-aware Storage Class to the organization, the administrator enables the underlying vSAN or SPBM (Storage Policy Based Management) to intelligently replicate data across those zones. When a workload is deployed using this storage class, the system ensures that components (such as vSphere Pod disks or VMDKs) are distributed such that at least one copy of the data remains accessible in a surviving zone if another zone goes offline. This is a critical design element for maintaining the "Three-Tier" architecture's stateful components, as it prevents a single-zone failure from causing a total data loss or application outage. While RAID policies (Option B) handle disk or host failures, only topology-awareness at the Storage Class level can properly mitigate a complete zone-level failure within the VCF Automation framework.

The Terraform provider for VCF Automation is the specific tool designed to allow Infrastructure-as-Code (IaC) workflows to interact with the VCF 9.0 API surface. In VCF 9.0, the provider has been expanded to support the newer Organization and Region-based architecture. By utilizing this provider, developers can declare Content Libraries, Cloud Zones, and Flavor/Image Mappings within their HCL (HashiCorp Configuration Language) files. While specific RBAC roles (like Organization Administrator) are necessary for the credentials used by the Terraform runner, the solution itself is the provider that translates Terraform commands into the correct REST API calls for the VCF Automation engine. This enables a consistent developer experience where infrastructure configuration is versioned in Git and applied programmatically, aligning with modern DevOps practices supported by the VCF 9.0 platform.

In the VCF 9.0 networking model, IP Quotas are the primary governance mechanism for controlling resource consumption within an Organization. When a Provider allocates IP blocks to an Organization, the Organization Administrator is responsible for sub-allocating those resources to individual projects or environments. To prevent non-production workloads from exhausting the pool of public (external) IP addresses, the administrator must Create an IP Quota specifically for the non-production Virtual Private Cloud (VPC). This quota defines the maximum number of public IP addresses that can be used for services such as Load Balancers or NAT rules within that specific VPC. Once the quota is reached, any further requests for public IPs in that VPC will be denied by the VCF Automation engine, ensuring that a sufficient supply remains available for production-critical workloads. Modifying the provider-shared quota (Option C) would affect the entire organization, and removing external blocks (Option D) would break existing connectivity rather than provide proactive governance.

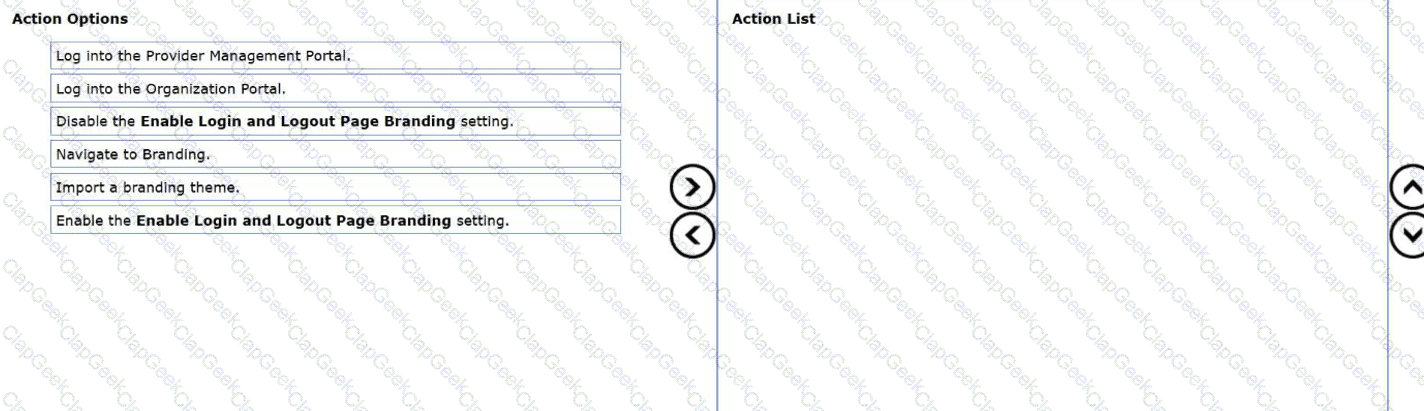

To configure tenant branding in VMware Cloud Foundation (VCF) 9.0 so that it only appears after a user has authenticated, the following three steps are required:

Ordered Steps:

Log into the Organization Portal.

Navigate to Branding.

Disable the Enable Login and Logout Page Branding setting.

In VMware Cloud Foundation (VCF) 9.0, branding is a tenant-specific configuration managed directly within the Organization Portal. This allows for a "white-labeled" experience where each organization can maintain its own visual identity. To satisfy the requirement that branding only appears after login, the administrator must first navigate to the Branding section of the portal settings.

The critical setting for this specific use case is "Enable Login and Logout Page Branding". By default, if this setting is enabled, the custom logo and background are displayed on the public-facing login screen. By disabling this setting, the portal will present the generic VCF login page to unauthenticated users, ensuring that sensitive tenant identity information is not visible to the public. Once the user successfully logs in, the platform identifies their organization context and loads the custom branding theme into the active session. This approach is standard for service providers who wish to maintain a unified entry point while providing customized environments for authorized users.

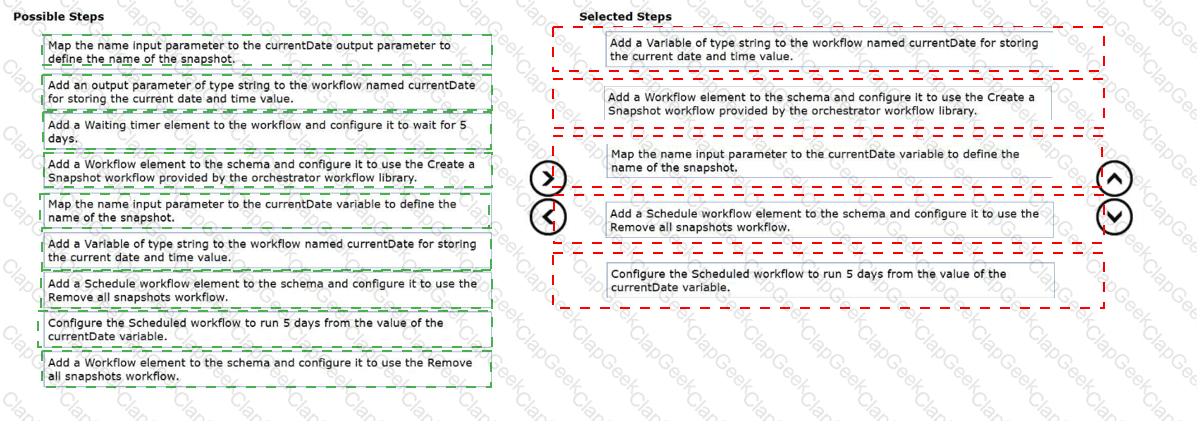

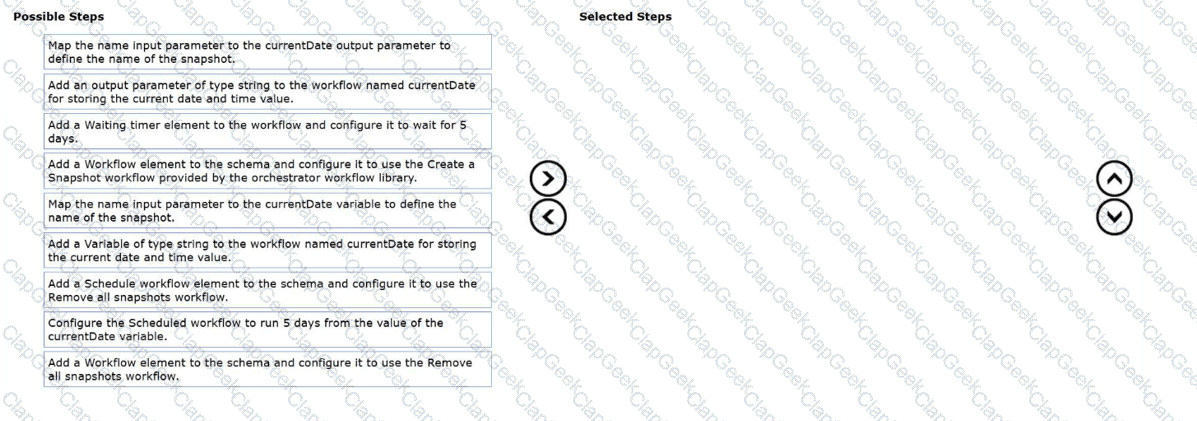

Add a Variable of type string to the workflow named currentDate for storing the current date and time value.

Add a Workflow element to the schema and configure it to use the Create a Snapshot workflow provided by the orchestrator workflow library.

Map the name input parameter to the currentDate variable to define the name of the snapshot.

Add a Schedule workflow element to the schema and configure it to use the Remove all snapshots workflow.

Configure the Scheduled workflow to run 5 days from the value of the currentDate variable.

In VMware Cloud Foundation (VCF) 9.0, the Operations orchestrator (vRO) is used to build complex, state-aware automation. To satisfy the requirement that the main workflow stops running while a second cleanup task triggers later, the administrator must use the Schedule workflow element rather than a "Waiting Timer". A waiting timer keeps the workflow "Active," consuming system resources for the duration of the wait (5 days), whereas a scheduled task is handed off to the orchestrator’s database to be triggered independently.

The configuration begins by defining a currentDate variable of type string. This variable captures the execution timestamp, which is then mapped to the Create a Snapshot library workflow to provide the required dynamic naming. To handle the automated cleanup, the administrator adds a Schedule workflow element. Unlike a standard workflow call, the scheduler allows for a specific execution offset. By configuring the Remove all snapshots workflow to run 5 days from the currentDate value, the administrator ensures the snapshot exists for exactly the maintenance and cooling-off period before being programmatically removed. This approach is robust against orchestrator service restarts and provides a clean, asynchronous method for managing the temporary infrastructure lifecycle in a VCF 9.0 environment.

In the VCF 9.0 governance hierarchy, the Organization acts as the top-level administrative and billing boundary, while the Project serves as the granular operational unit. Every Project must reside within a single Organization. The Project is the primary mechanism for Role-Based Access Control (RBAC) and resource entitlement. Within a Project, the administrator maps Cloud Zones or Namespace Classes to specific sets of users and groups. This allows a large organization (e.g., "Engineering") to have multiple projects (e.g., "Project Alpha" and "Project Beta") with different resource limits and user permissions, all while sharing the same underlying organizational settings, identity providers, and regional infrastructure. Projects also allow for the isolation of Cloud Templates (blueprints); a template created in Project Alpha is not visible or deployable by users in Project Beta unless it is explicitly shared through the Service Broker catalog.

In the VCF 9.0 multi-tenant networking model, Virtual Private Clouds (VPCs) communicate with each other through a regional backbone. The Private-Transit Gateway IP Blocks field is specifically designated for the internal IP ranges used to facilitate this inter-VPC connectivity. When an administrator configures a Connectivity Profile for an organization, they must define these blocks to ensure that traffic routed between different departments or projects within the same region has a valid, non-conflicting address space to traverse the NSX Transit Gateway. Unlike External IP Blocks, which are used for SNAT/DNAT to the public internet or corporate WAN, the Private-Transit blocks are strictly for the "east-west" transit layer within the VCF Automation framework. Proper allocation in this field is essential for enabling seamless microservices communication across VPC boundaries while maintaining the logical isolation provided by the Supervisor.
