3V0-21.21 Advanced Design VMware vSphere 7.x Questions and Answers

The Chief Operating Officer (COO) at an organization raises concerns that their virtual infrastructure environment is vulnerable. Recently, a security-related issue with a virtual machine caused all management services to become unavailable. No budget is available in the short term for additional platform investment. An architect is asked to review the current environment and make recommendations to mitigate concerns.

A virtualization administrator has provided the following details:

• There is a single four node cluster of ESXi servers
• There are two, Layer 2, physical network switches connecting resources
• The data center network is presented as a single /16 subnet

Given the information provided, which functional requirement should the architect include in the design to mitigate the COOs concerns?

In a meeting to discuss the minimum viable product (MVP) deployment of a new customer-facing application, the key stakeholder shares details of the application components and the application administrators share details of performance and integrity tests for the application.

The application will be made up of the following components:

• A web server

-Steps to confirm the web server is operating correctly will take 15 minutes after the application server is online.

• An application server

-Steps to confirm application server integrity will take 15 minutes after the database is online.

• A database server

-The database server will be managed by a database administrator, with an agreed service-level agreement (SLA) to restore and validate database services within one hour.

The existing VMware infrastructure offers a recovery point objective (RPO) of 5 minutes and recovery time objective (RTO) of 15 minutes through a combination of backups and replication.

In the event of an outage impacting all three application components, how long will it take for the application to recover and complete all checks?

An architect is tasked with recommending a solution for a company that is running out of VLANs. Currently the company is running two separate data centers based on vSphere including an Enterprise Plus license. In the first data center, the problem was solved by using VMware NSX and overlay network. In the second data center, there is currently no VMware NSX implementation in place and no budget for additional licenses.

What should the architect recommend as a potential solution to provide support for additional VLANs?

What is a benefit of using a scale-out method for handling vSphere cluster growth?

A architect is designing a new VMware software-designed data center (SDDC) using vSphere 7 to meet the following requirements:

• The SDDC must be deployed at two locations: primary and secondary.
• vSphere Replication must be used to replicate virtual machines between the two locations.
• Site Recovery Manager must be used to orchestrate disaster recovery (DR) activities.
• One single-sign on (SSO) domain must be used to authenticate access at both locations.

Which design decision should the architect make to meet these requirements?

An architect is reviewing a physical storage design. The customer has specified that storage DRS will be used for ease of operational management for capacity and performance.

Which recommendation should the architect include in the design?

Which two statements are true about gathering functional business and application requirements? (Choose two.)

An architect is tasked with planning the design of a new vSphere environment. When commissioned, this environment will be used to migrate an existing set of virtual machines.

An inventory of the existing infrastructure, including configured vCPU, RAM and storage sizes has been provided.

In order for each virtual machine to be migrated, which two data sources with peak and average utilization data are required for sizing? (Choose two.)

Which two of the listed requirements would be classified as manageability non-functional requirements? (Choose two.)

An architect is tasked with designing a greenfield VMware software-defined data center (SDDC) solution that will be used to deliver a private cloud service for a customer.

During the initial meeting with the service owner and business sponsor, the customer has provided the following information to help inform the design:

• The solution must support the concurrent running of 1,000 virtual machines
• The production environment must be delivered across two geographically dispersed data centers All virtual machines must be capable of running in either data center.
• The two data centers are currently connected to each other through a single but diversely routed, high bandwidth and low latency link.
• The link between the two data centers is capable of supporting a round-trip time (RTT) of 150 ms The existing server hardware standard document states that all virtual infrastructure hosts must be deployed using vSAN ReadyNodes
• The service owner has stated that it is critical to ensure the availability target of 99.9% All virtual machine backups must be completed using the existing backup service
• The recovery time objective (RTO) for the service is five minutes
• The recovery point objective (RPO) of the service is four hours

Which two elements represent risks to the successful delivery of this solution? (Choose two.)

Which requirement would be classified as a functional requirement within the application design documentation?

The Chief Information Security Officer (CISO) for an organization is concerned about the security posture of the operating system images that are used for the provisioning of their Software-as-a-Service (SaaS) applications. The organization is in a growth period. The organization is opening a new data center to launch its next phase of new SaaS-based solutions.

The DevOps team currently creates encrypted virtual machine (VM) templates that are used for various operating systems and adds these to the vSphere inventory. The DevOps team already uses a published content library and has been granted a role with the ability to add and delete library items.

The following requirements have been noted:

• Impacts to the DevOps team’s operational processes must be kept to a minimum.
• The DevOps team must be able to regularly check out a copy of the image for updates and check in a new version of the image.
• Images must be synchronized from the primary data center to the new data center.

Which three recommendations should the architect make to design a content library solution that will meet these requirements? (Choose three.)

An architect is tasked with designing a new VMware software-defined data center (SDDC) solution for an online retail customer who has a primary and secondary data center as well as 10 distribution hubs.

The customer has provided the following business requirements to help inform the design:

• The solution must support the running of up to 1,000 concurrent virtual machines across the primary and secondary data center.
• The solution must support the running of up to 20 concurrent virtual machines in each distribution hub.
• The solution must support the separation of management and lines-of-business application virtual machines.
• All management components (including directory services, backup, automation, operations and logging) must be deployed to the primary data center.
• All virtual infrastructure components must have redundancy of N+1.
• All sites are connected to each other using a wide area network that has multiple diversely routed links.
• The solution should support a monthly uptime target of 99.9%.
• The recovery time objective (RTO) for the solution must be four hours.
• The recovery point objective (RPO) for the solution must be 24 hours.

Given the information from the customer, which assumption should the architect include in the design?

There is a request for approved virtual machine applications through a new vSphere platform’s integrated automation portal. The platform was built following all provided company security guidelines and has been assessed against Sarbanes-Oxley Act of 2002 (SOX) regulations.

The platform has the following characteristics:

• vRealize Operations is being used to monitor all clusters.
• There is a dedicated ESXi cluster, supporting all management services.

There is a dedicated ESXi cluster for all line-of-business applications.

• Network traffic is serviced by NSX-T.

There is a dedicated ESXi cluster for virtual desktop infrastructure (VDI).

• Network traffic is serviced by NSX-T.

The application owner is requesting approval to install a new service that must be protected as per the Payment Card Industry (PCI) Data Security Standard.

Which additional non-functional requirement should the architect include in the design to support the new service?

A VMware Service Provider is tasked with delivering a solution for continuous availability for a subset of Tier 1 virtual machines (VMs) and vApps running in their vSAN environment. The VMs make up a mission-critical application and there can be no data loss in the event of an outage at their primary data center. In the event of a regional outage, they have established a 10-minute recovery point objective (RPO). Failover/failback to the third site must be automated.

They have the following in place:

• Two local data centers (primary and secondary) connected with 100 Gb dedicated fiber

• uk.co.certification.simulator.questionpool.PList@195eb6c0

A third data center located on another power grid

• 70ms latency between the primary and secondary data centers

• Matching storage arrays at all locations

Which two solutions could be used to meet the requirements? (Choose two.)

A new vSphere platform is being created. The platform will host virtual machines that will run management services and line-of-business applications.

What should the architect consider when designing the number and type of clusters required?

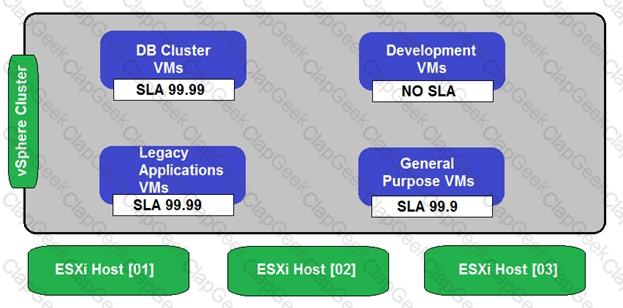

Refer to the exhibit.

During a requirements gathering workshop, a customer shares the following diagram regarding their availability service-level agreements (SLAs):

The customer states that there is no application level availability for legacy applications.

Which recommendation could the architect make to meet the customer’s high availability requirements for the legacy applications virtual machines?

An architect is designing a new greenfield environment that will install ESXi on local disks. There is a requirement to streamline initial and future installations of ESXi hosts.

Which configuration option should the architect recommend for installing ESXi hosts to meet these requirements?

An architect is considering placement of virtual machines within an existing VMware software-defined data center (SDDC).

During the discovery phase, the following information is documented:

Cluster One

• Six ESXi hosts
• vSphere HA with host failures cluster tolerates = 1
• Proactive HA is enabled and set to automated
• Fully Automated vSphere DRS
• Transparent Page Sharing (TPS) is enabled

Cluster Two

• Eight ESXi hosts
• vSphere HA with host failures cluster tolerates = 1
• Proactive HA is disabled
• Partially Automated vSphere DRS
• Transparent Page Sharing (TPS) is disabled

Cluster Three

• Three ESXi hosts
• vSphere HA with admission control is disabled
• Proactive HA is not supported
• Transparent Page Sharing (TPS) is disabled

Virtual Machine Resource Profile 1

• Memory sharing techniques should not be used
• Virtual machines should be automatically restarted in the event of host failure if resources are available
• Automated initial virtual machine placement

Virtual Machine Resource Profile 2

• Memory sharing techniques should not be used
• Virtual machines should be automatically restarted in the event of host failure regardless of available resources
• Automated initial virtual machine placement

Which two recommendations should the architect make for placement of the virtual machines to meet resource profile requirements? (Choose two.)

The storage team at an organization is planning to migrate from an older Fibre Channel storage environment to a new environment using IP-based storage.

Which two switch features or characteristics are appropriate for IP storage networks? (Choose two.)

An architect is tasked with designing a greenfield VMware software-defined data center (SDDC) solution that will be used to deliver a private cloud service for a customer.

During the initial meeting with the service owner and business sponsor, the customer has provided the following information to help inform the design:

• The solution must initially support the concurrent running of 300 production and 600 development virtual machines.
• The production environment should be delivered across two geographically dispersed data centers. The development environment must be vSphere-based but does not have to be deployed on-premises.
• The two data centers are connected to each other through multiple diversely routed, high bandwidth and low latency links.
• The customer’s server hardware standard document states that all virtual infrastructure hosts must be based on blade architecture only.
• The service owner has said that is important to ensure that neither the availability target of 99.5% nor the resource capacity is affected when the operations team completes maintenance activities, such as the monthly software patching and ad-hoc hardware break/fix.
• All virtual machine backups must be completed using the existing backup service. The recovery time objective (RTO) for the service is four hours.
• The recovery point objective (RPO) of the service is 24 hours.

Given the information from the customer, which two would be classified as assumptions within the design? (Choose two.)

An architect is reviewing a physical storage design. The customer has specified that a new active-passive based storage array will be used to provide storage for the vSphere clusters.

Which configuration should for the architect recommended?

During a requirements gathering workshop to design a physical to virtual migration, the customer provides the following information:

• There is no physical firewall in the data center with no anticipated plans for a future network refresh.
• Leveraging the virtual infrastructure to mitigate the lack of network security must be addressed in the design.
• All physical servers to be migrated exist on the same VLAN.

Which recommendation should the architect make to address the customer requirement with regard to virtual networking?
