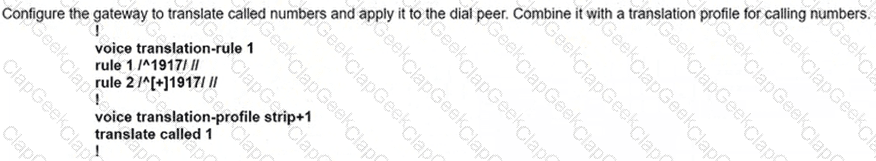

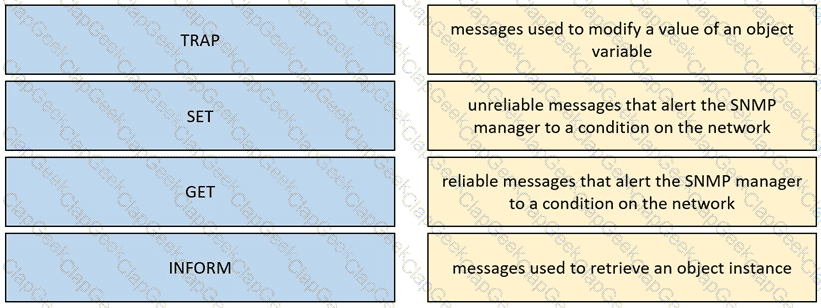

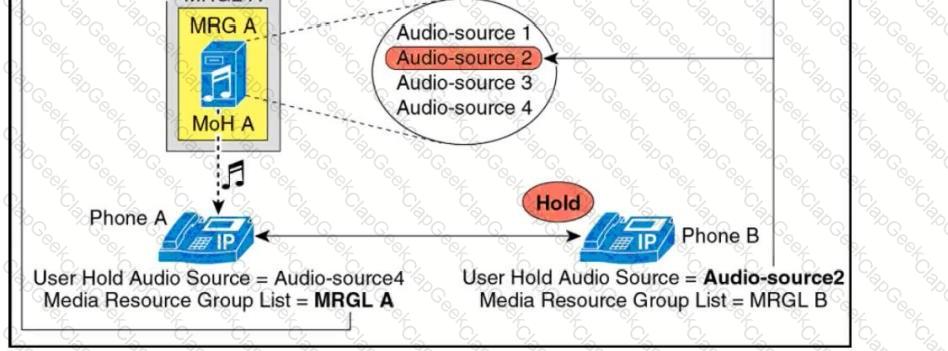

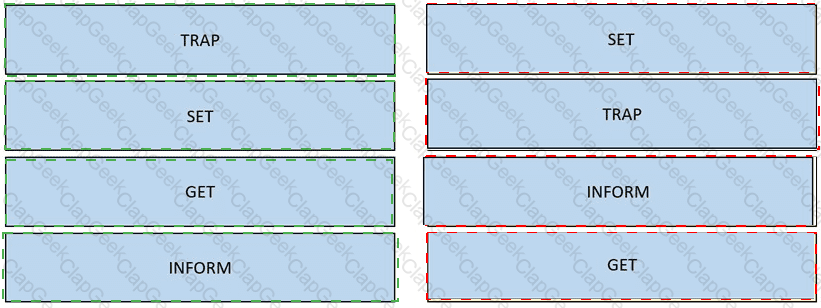

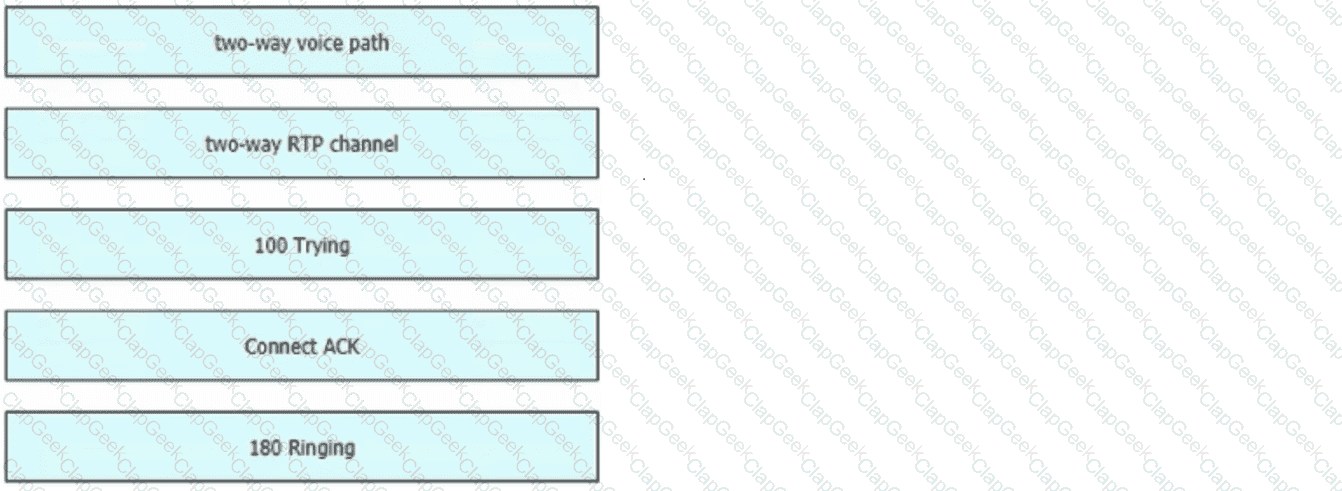

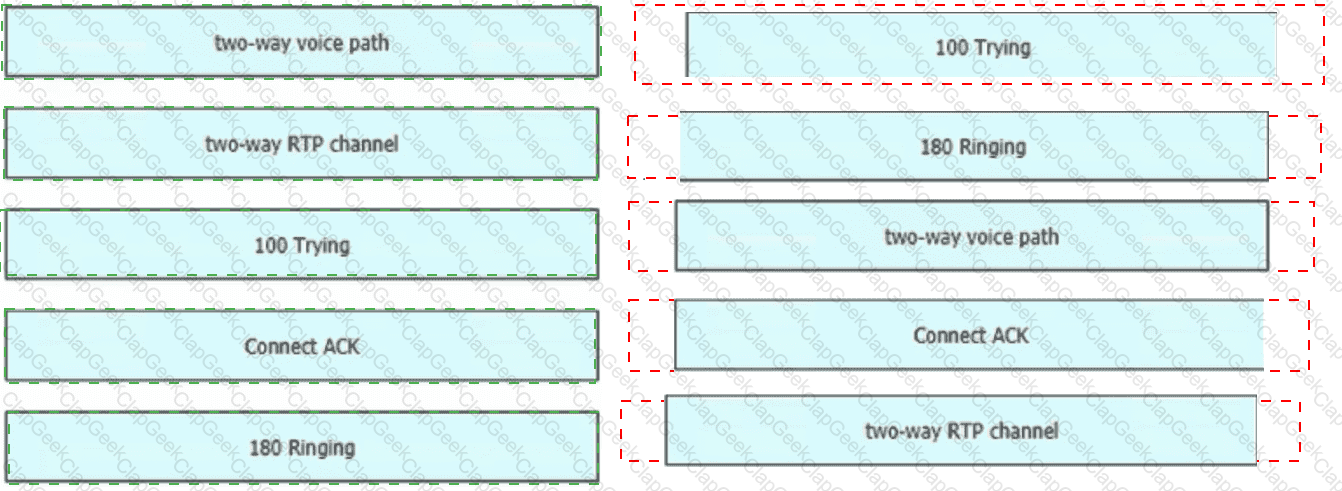

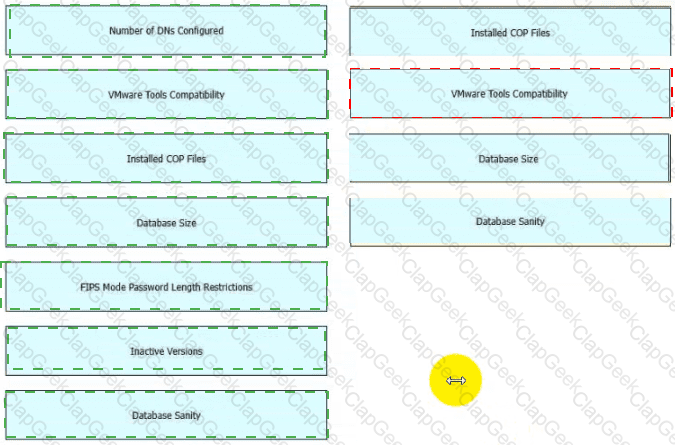

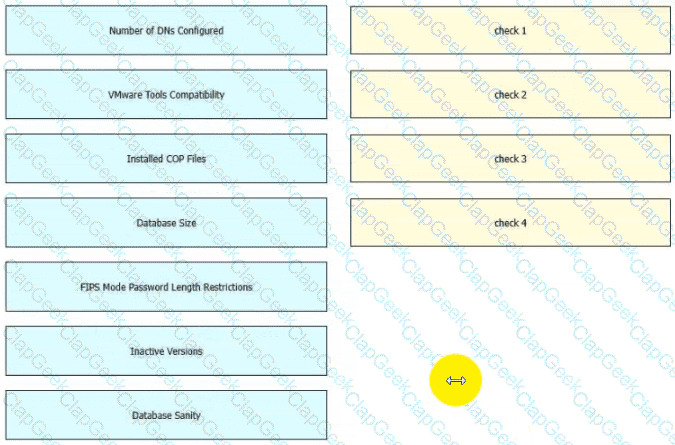

Drag and drop the SNMPv3 message types from the left onto the corresponding definitions on the right.

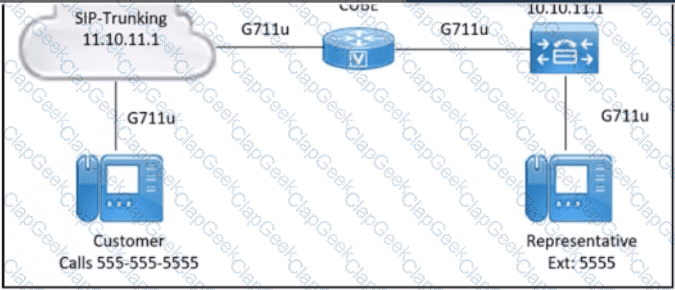

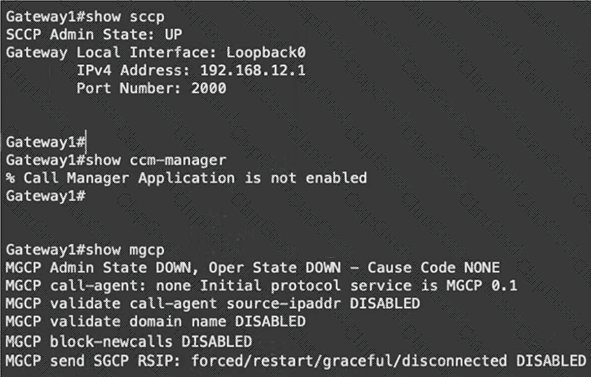

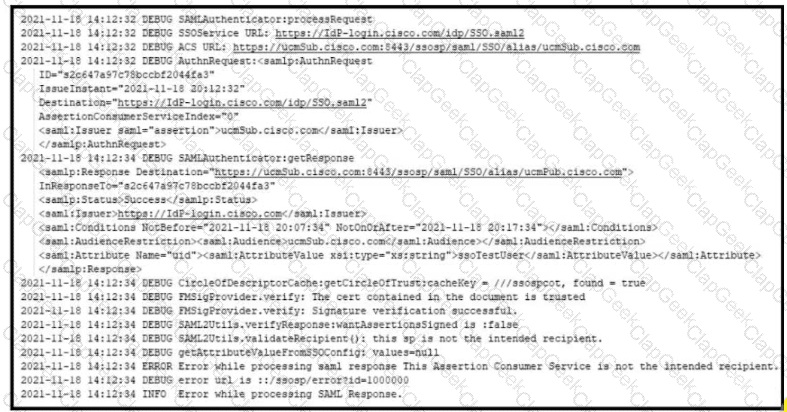

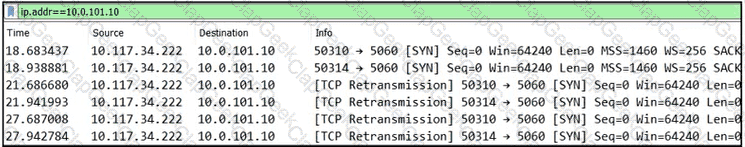

Refer to the exhibit.

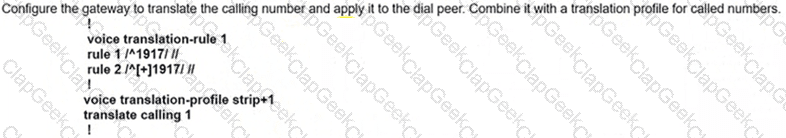

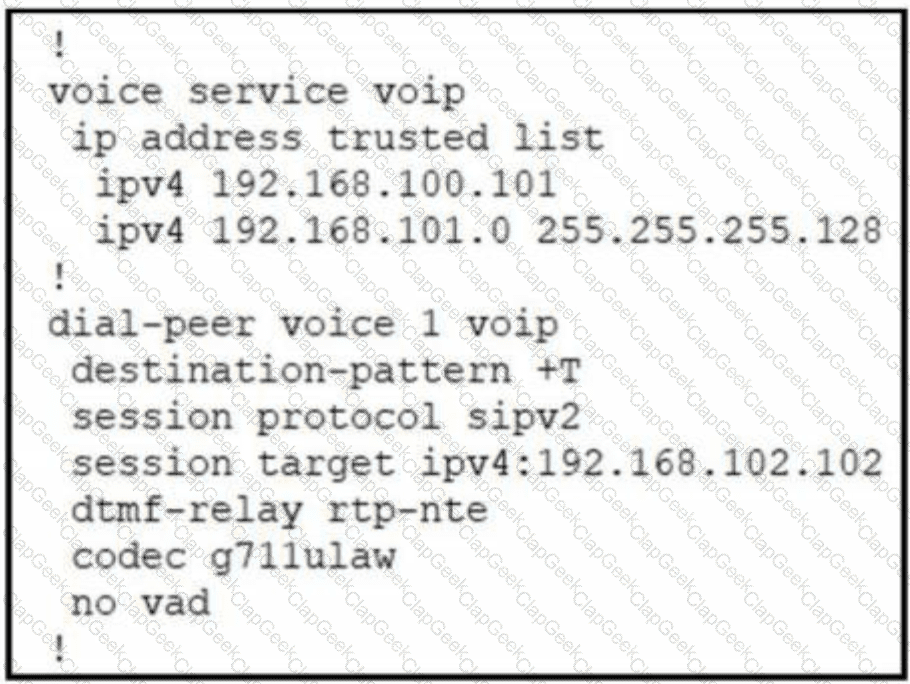

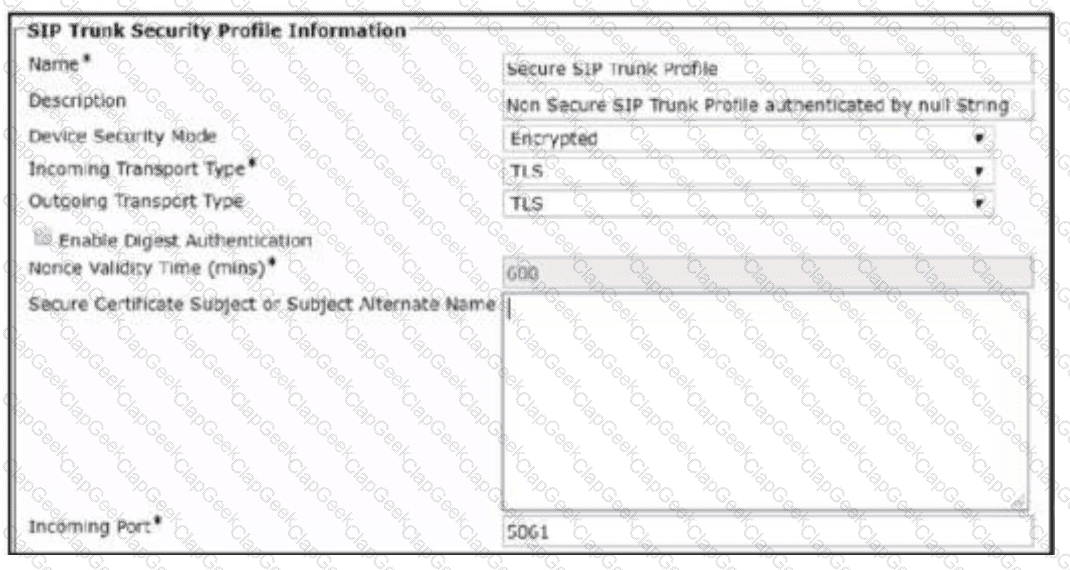

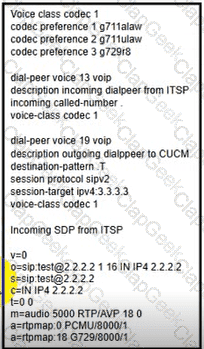

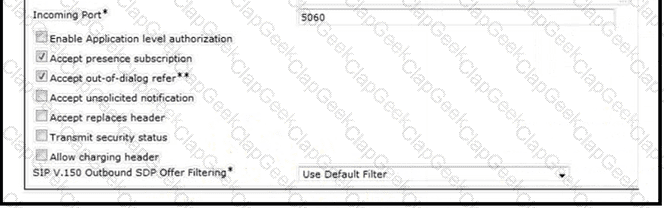

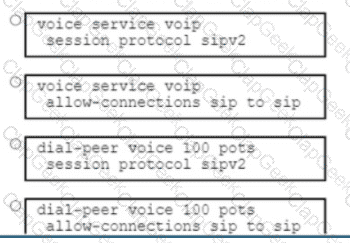

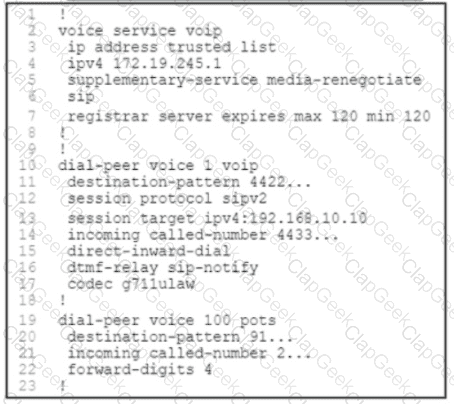

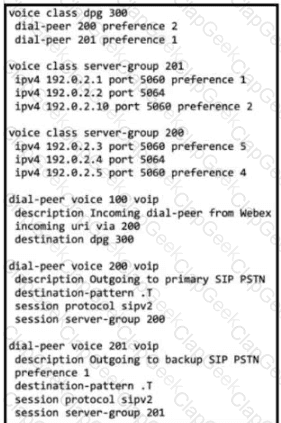

When a call is received on Cisco Unified Border Element. from which
lP does it allow a connection?
An engineer is configuring a phone system CISCO UCM and wants to activate TFTP service. The engineer selects the serviceability page for configuration. Which nodes configurable for TFTP?
An engineer implements a new Cisco UCM based telephony system per these requirements.
•The local Ethernet bandwidth is sized based on the total bandwidth per call
•A G 736 codec is used.
•The bit rate is 64 kbps
•The codec sample interval is 10 ms
•The voice payload size is 160 bytes per 20 ms
What should the size of the Ethernet bandwidth be per call?
Which two configuration elements are part of the Cisco UCM toll-fraud prevention?(Choose two.)
What is the maximum one-way latency and jitter for voice before quality issues arise?
An administrator is developing an 8-class QoS baseline model. The CS3 standards-based marking recommendation is used for which type of class?
An engineer wants to manually deploy a CISCO Webex DX80 Video endpoint to a remote user. Which type of provisioning is configured on the endpoint?
An engineer with ID0123456789 is designing a new dial plan for a customer that has offices in several countries on four continents around the world. This client also wants to integrate with a Microsoft Lync backend. Which dial plan type does the engineer recommend?
An engineer must configure a new Cisco UCM translation pattern to convert 915555555555 into 1665 Which translation pattern must be used?
An engineer is notified that the Cisco TelePresence MX800 that is registered in Cisco Unified communications Manager shows an empty panel, and the Touch 10 shows a corresponding icon with no action when pressed. Where does the engineer go to remove the inactive custom panel?

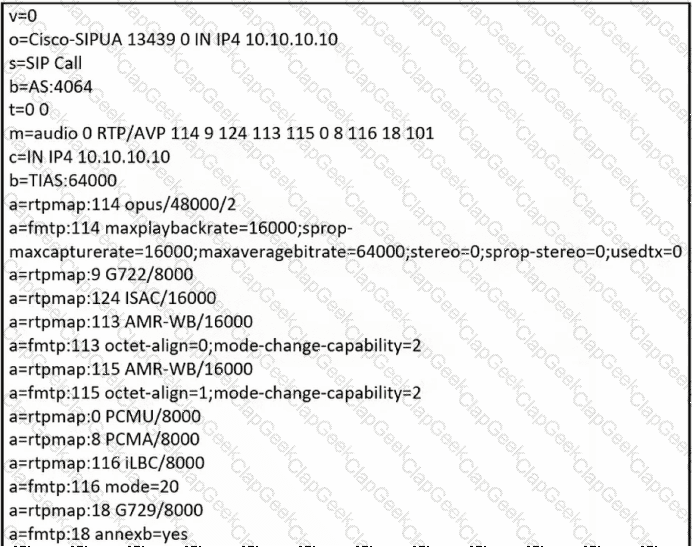

A Cisco IP Phone 7841 that is registered to a Cisco Unified Communications Manager with default configuration receives a call setup message. Which codec is negotiated when the SDP offer includes this line of text?

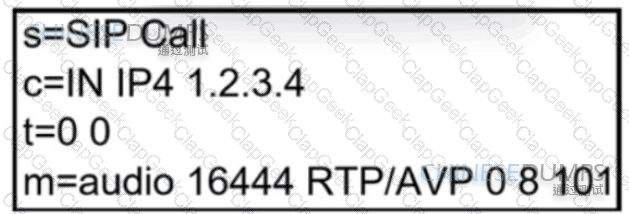

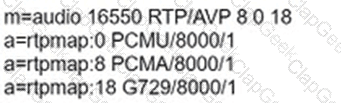

M=audio 498181 RTP/AVP 0 8 97
Which DiffServe PHB preserves backward compatibility with any IP precedence scheme?

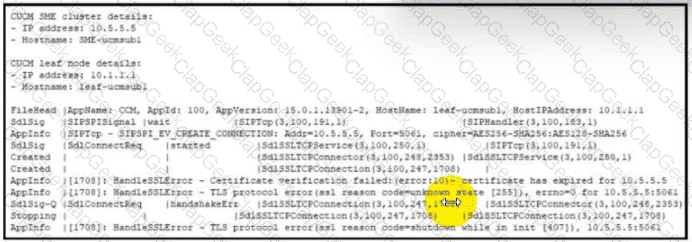

Refer to the exhibit.

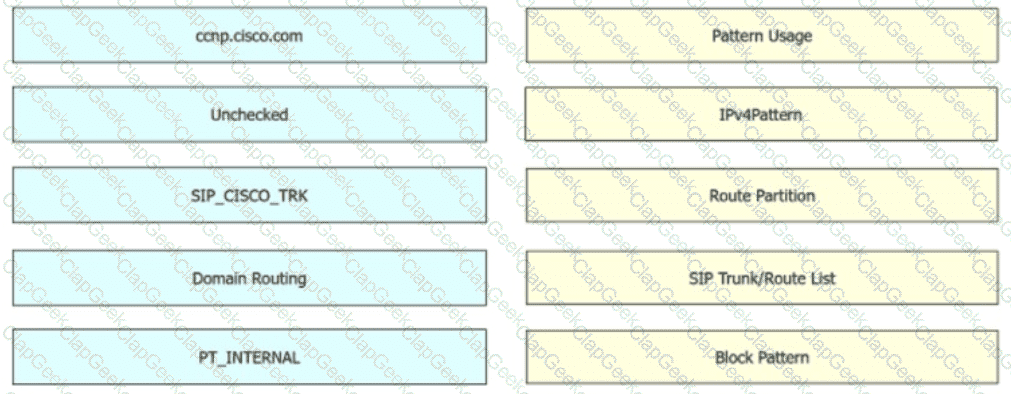

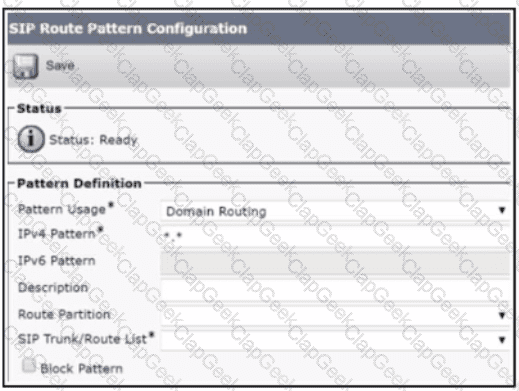

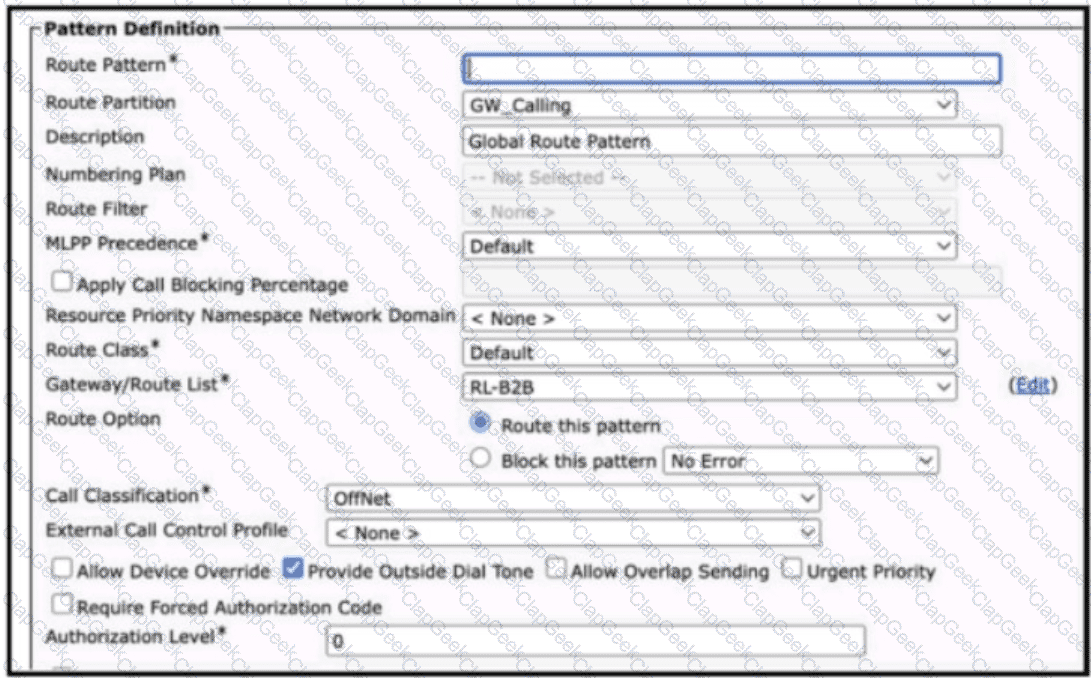

In Cisco UCM, an engineer must create a new SIP route pattern that must be reachable by all internal callers. The internal callers have a calling search space named CSSJNTERNAL that includes a partition named PTJNTERNAL. The SIP trunk has a calling search space named CSS_SIP_RP that includes the two partitions named PT_SIP_INTERNAL and PT_SIP_LOCAL What must be used as the route partition for the SIP route pattern?
A Cisco UCM location between a client's headquarters and branch office is configured for 512 kbps of audio bandwidth and 384 kbps of video bandwidth. What is the maximum number of G.711 calls allowed through this link?
The security department will audit an IT department to ensure that the proper guidelines are being followed. The reports of the call detail records show unauthorized access to PSTN. Which two actions should an administrator check to prevent the unauthorized use of the telephony system? (Choose two.)

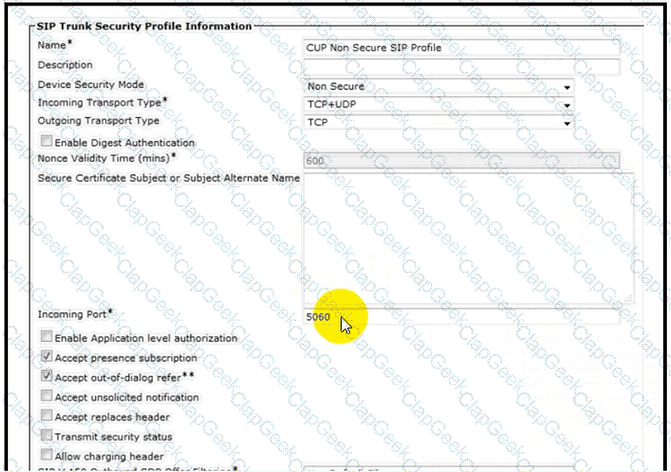

An engineer must configure a SIP integration between cisco UCM and cisco Unity Connection. These components are configured already:

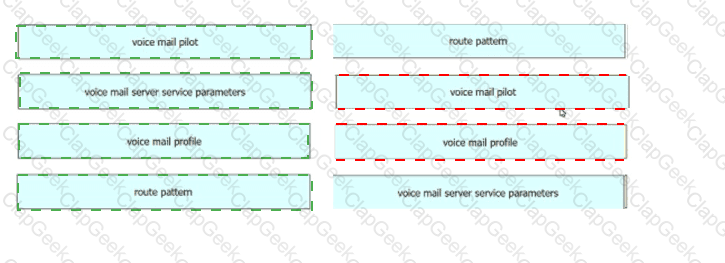

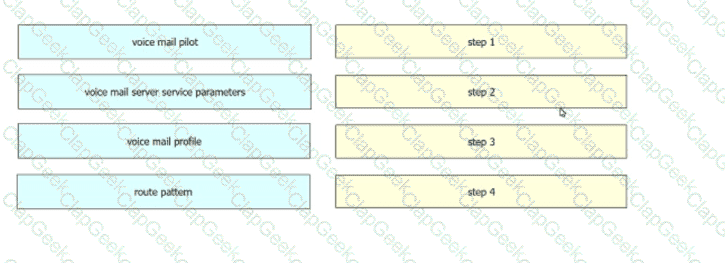

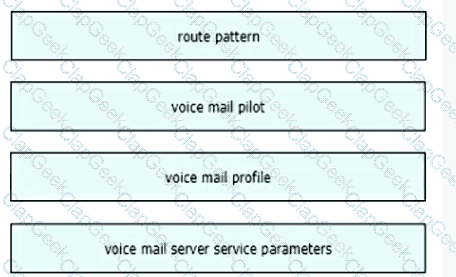

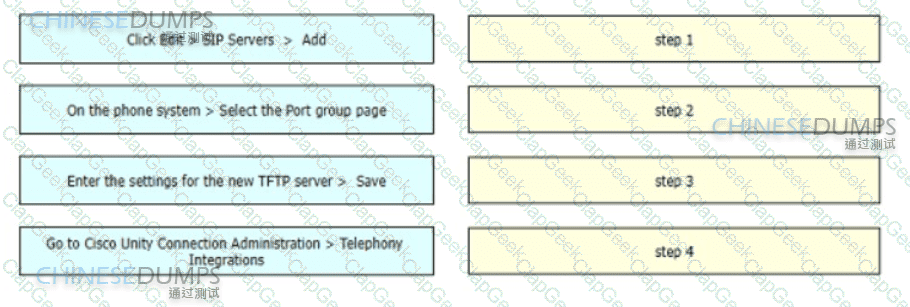

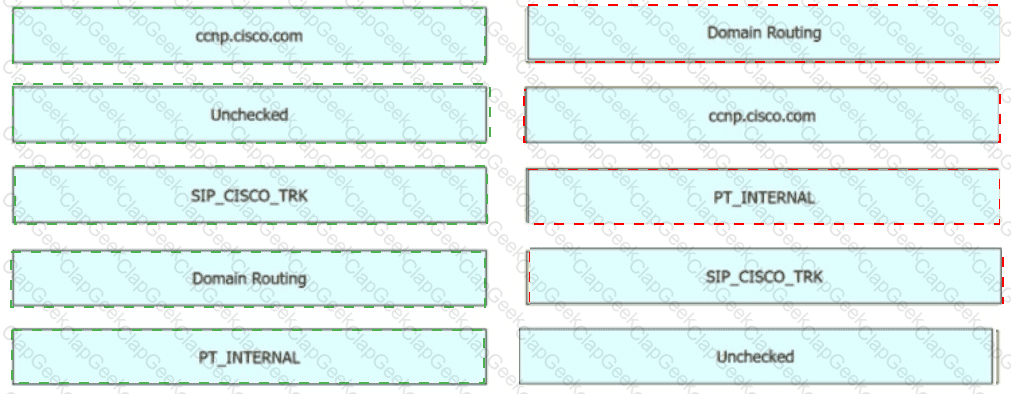

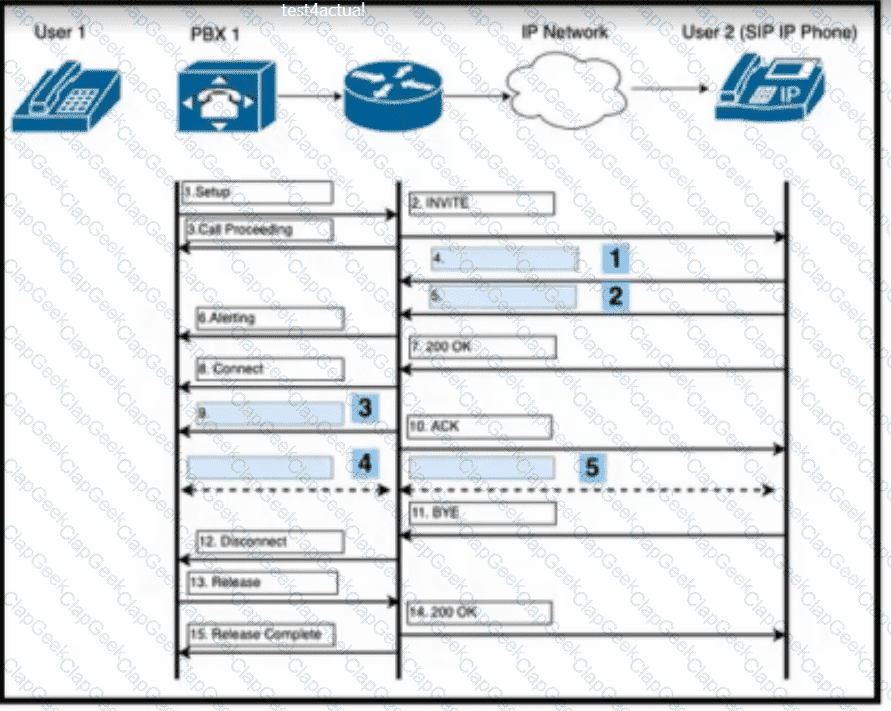

Drag and drop the components from the left into the order they must be configured on the right.
Which behavior occurs when Cisco UCM has a CallManager group that consists of two subscribers?
An administrator has been asked to implement toll fraud prevention in Cisco UCM Which tool is used to begin this process?
An engineer configures a Cisco Unified Border Element and must ensure that the codecs negotiated meet the ITSP requirements. The ITSP supports G.7llulaw and G.729 for audio and H.264 for video. The preferred voice codec is G.711. Which configuration meets this requirement?

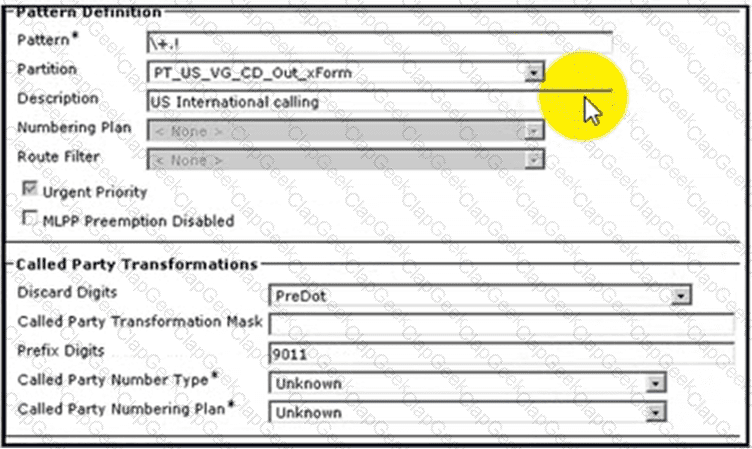

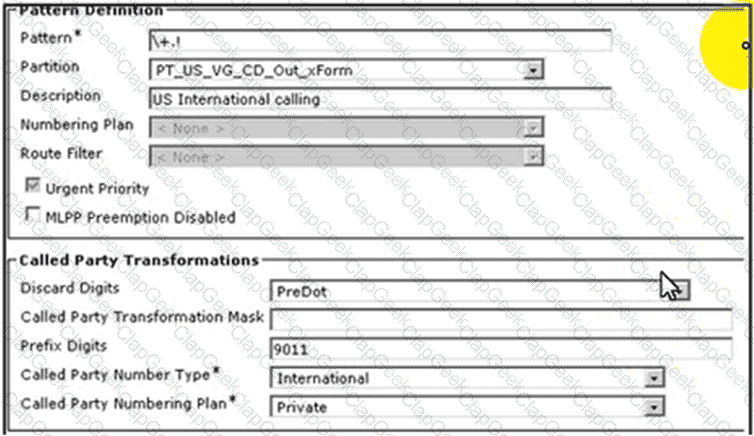

A user dials 9011841234567 to reach Vietnam. Which steps send the call to the PSTN provider as 011841234567?
A)
B)
C)
D)
What are two features of Cisco Expressway that the customer gets if Expressway-C and Expressway-E are deployed?(Choose two.)
An organization is deploying a Cisco Unified Border Element for Webex calling. The engineer's voice gateway is a Cisco CSRlOOOv on version 17.x.x. How must the engineer configure G.729 codec to be the first priority for all calls, followed by GJHulaw and G.711alaw?
A)
B)
C)
D)

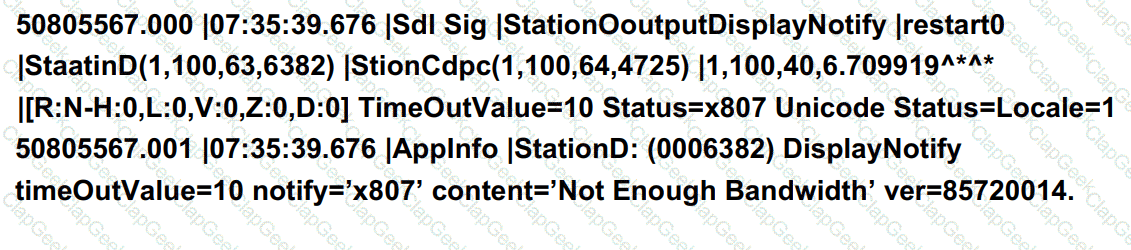

Refer to the exhibit. A customer submits this debug output, captured on a Cisco IOS router. Assuming that an MGCP gateway is configured with an ISDN BRI interface, which BRI changes resolve the issue?

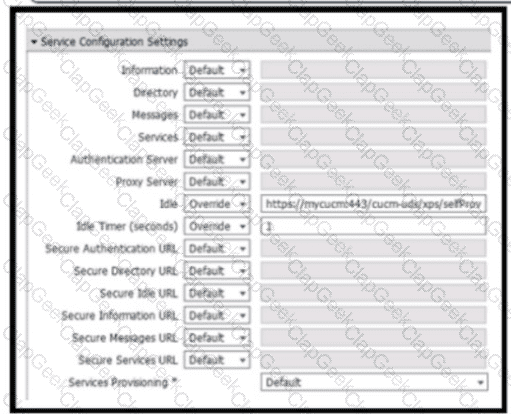

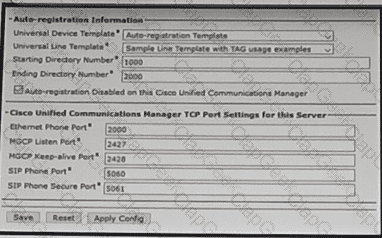

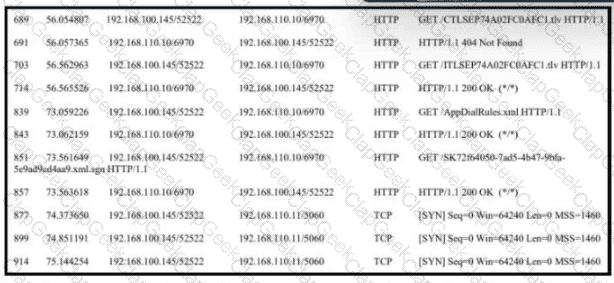

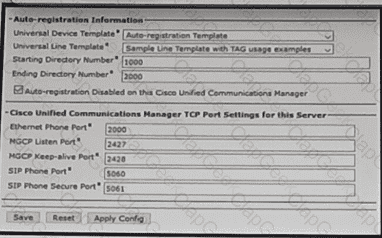

A Cisco UCM administrator wants to enable the Self-Provisioning feature for end users. Which two prerequisites must be met first? (Choose two.)
Refer to the exhibit. Which action must an engineer take to implement self-provisioning on a primary communications manager server?
Refer to the exhibit.

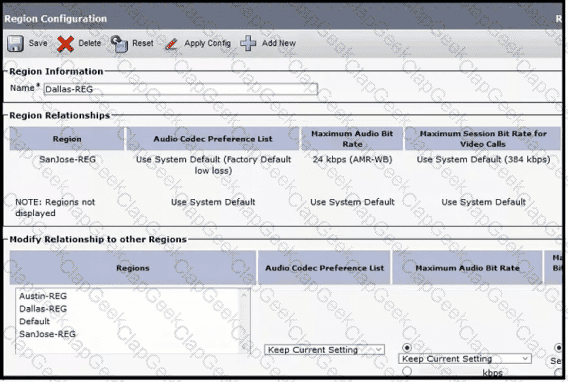

Which codec should an engineer select for a call made between "Dallas-REG' & "Austin-REG'?
On which protocol and port combination does Cisco Prime Collaboration receive notifications (Traps and InformRequests) from several network devices in the Collaboration infrastructure for which it has requested notifications?
User A Calls user. The call gets connected, but the quality is bed. What are two reasons for this issue? (Choose two)
Refer to the exhibit.

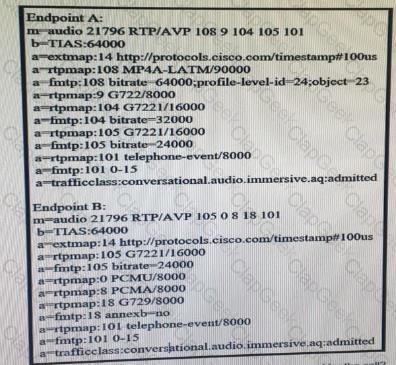

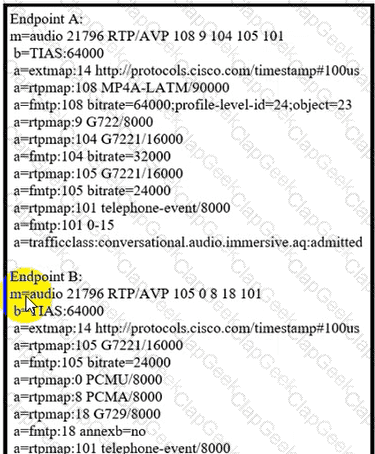

Endpoint A calls endpoint B. What is the only audio codec that can be used for the call?

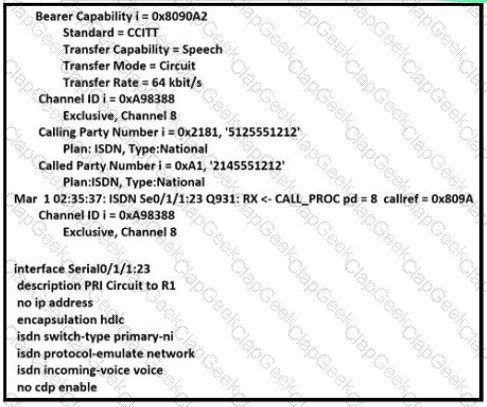

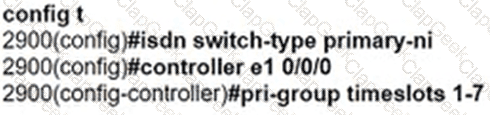

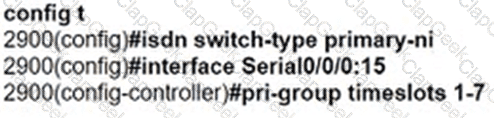

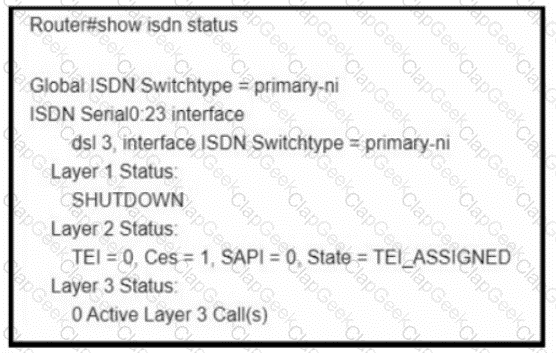

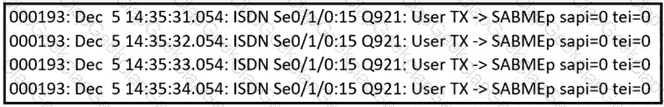

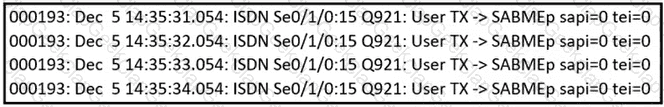

An engineer troubleshoots outbound can failure on an ISDN-PRI circuit. The engineer ts suspecting the 'Incomplete Destination". Which debugs or commands are run in the voice gateway to troubleshoot the issue?
Refer to the exhibit.

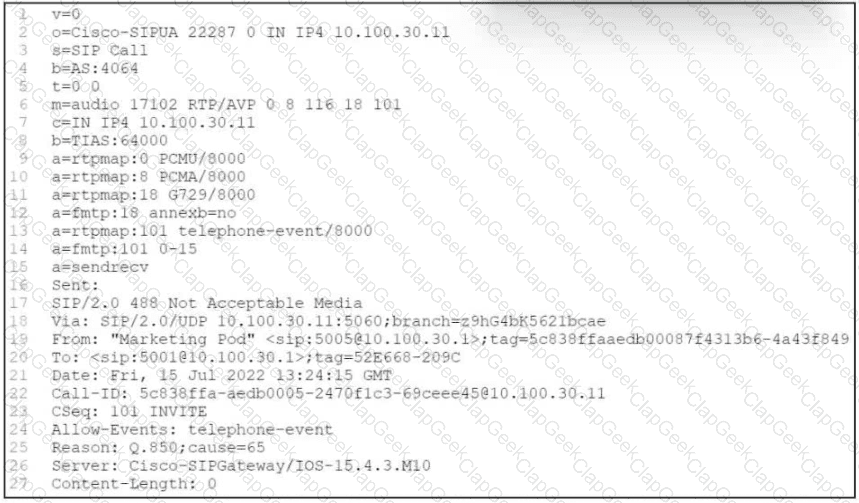

https://i.postimg.cc/C57TkczG/image.png

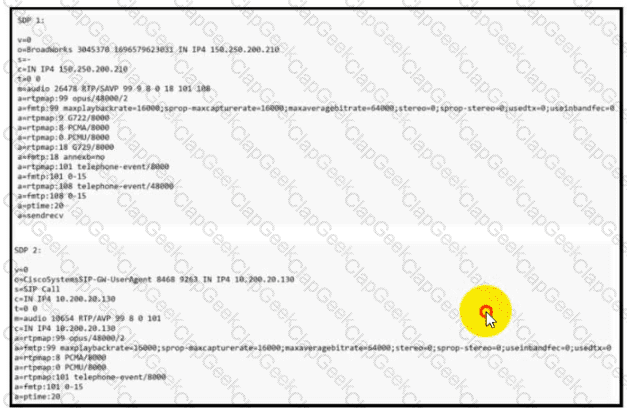

A call is falling to establish between two SIP Devices The called device answers with these SOP Which SOP parameter causes issue?

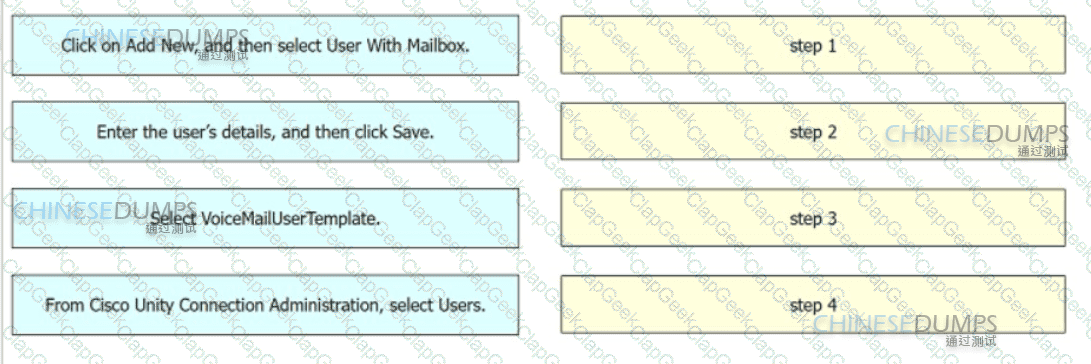

An engineer must add a new user account and mailbox in Cisco Unity Connection. Drag and drop the configuration steps from the left into the correct order on the right.
The chief technology officer at a company must onboard devices to the cloud A workspace is created in Cisco Webex Control Hub for every device. What must be generated to complete the on boarding process?

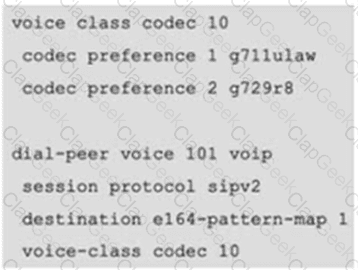

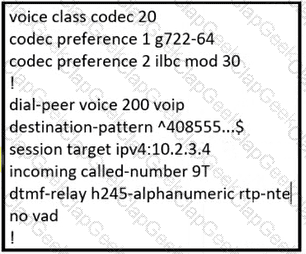

Refer to the exhibit. An administrator configured a codec preference list with 0,122 and ILBC codecs. Which change must the administrator make in the dial-peer section of the configuration to use this list?

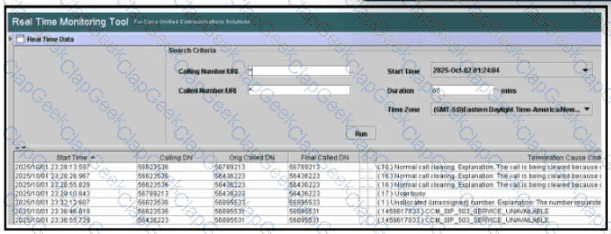

Callers from a branch report getting busy tones intermittetly when trying to reach colleagues in other office branches during peak hours. An engineer collects Cisco
CallManager service traes to examine the situation. The traces show:
What should be fixed to resolve the issue?
Which endpoint feature is supported using Mobile and Remote Access through Cisco Expressway?
An engineer with troubleshoots poor voice quality on multiple calls. After looking at packet captures, the engineer notices high levels of jitter. Which two areas does the engineer check to prevent jitter? (Choose two.)

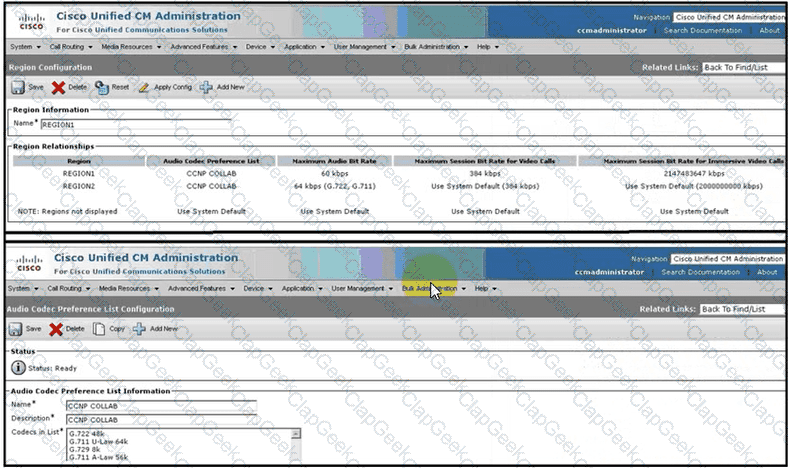

Refer to the exhibit. An engineer is troubleshooting this video conference issue:
*A video call between a Cisco 9971 in Region1 and another Cisco 9971 in Region1 works.
*As soon as the Cisco 9971 in Region1 conferences in a Cisco 8945 in Region2. the Regio1l endpoint cannot see the Region2 endpoint video.
What is the cause of this issue?

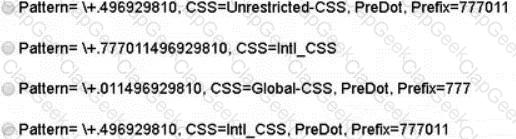

A network engineer must convert an inbound number 14085551111 when it reaches Cisco UCM and then converts it to an internal extension 3022, so it can ring to a specific desk. Which action meets this requirement?
Which values must be enabled to set up QoS for video conferencing on a VoIP network?
-
Guidelines
-
This is a lab item in which tasks will be performed on virtual devices.
• Refer to the Tasks tab to view the tasks for this lab item.
• Refer to the Topology tab to access the device console(s) and perform the tasks.
• Console access is available for all required devices by clicking the device icon or using the tab(s) above the console window.
• All necessary preconfigurations have been applied.
• Do not change the enable password or hostname for any device.

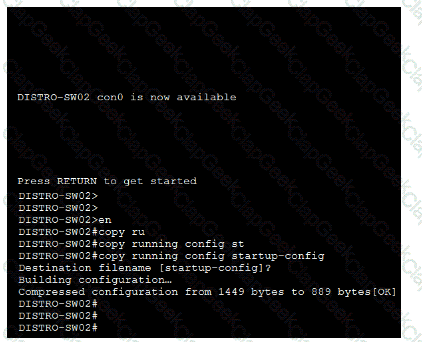

• Save your configurations to NVRAM before moving to the next item.
• Click Next at the bottom of the screen to submit this lab and move to the next question.
• When Next is clicked, the lab closes and cannot be reopened.
Topology
Tasks
-
The operations team started configuring network devices for a new site.
Complete the configurations to achieve these goals:

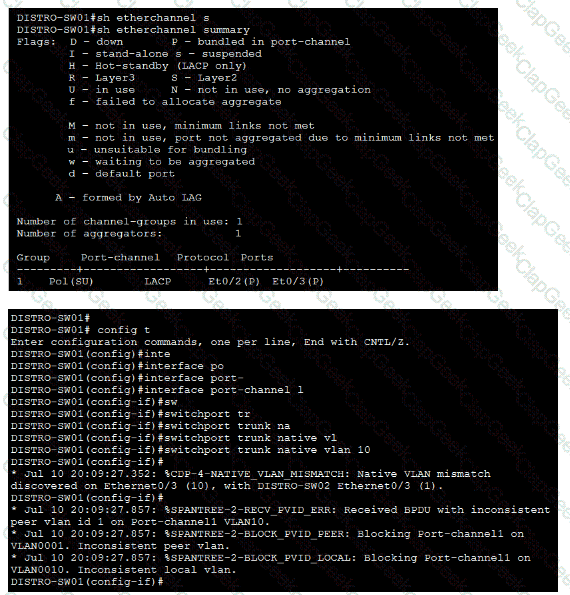

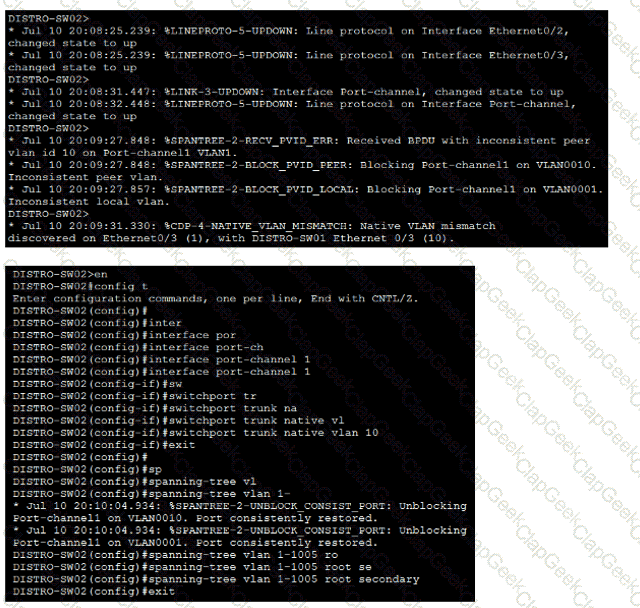

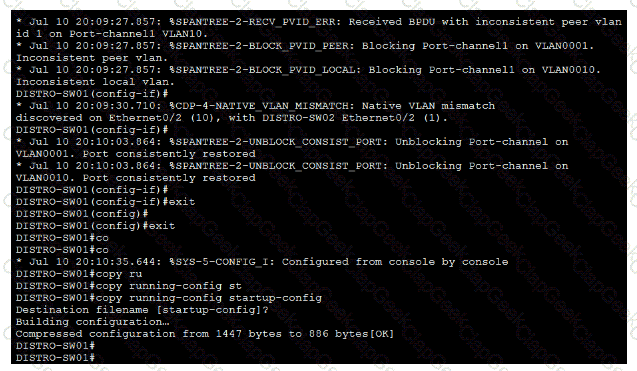

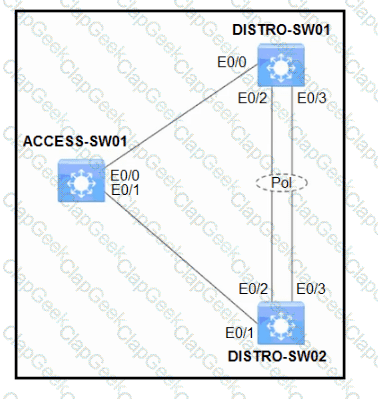

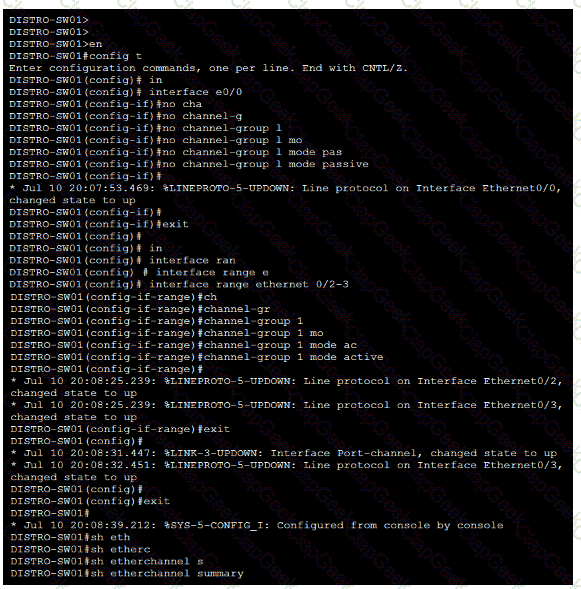

1. Ensure that port channel Po1 between DISTRO-SW01 and DISTRO-SW02 is operational using the LACP protocol. Configuration changes for this task must be made on DISTRO-SW01.
2. Ensure that traffic on VLAN 10 is carried as untagged traffic between DISTRO-SW01 and DISTRO-SW02.
3. Complete the Rapid-PVST+ configuration on DISTRO-SW2 by ensuring it it the secondary root switch for all VLANs in the range of 1 to 1005.
DISTRO-SW01

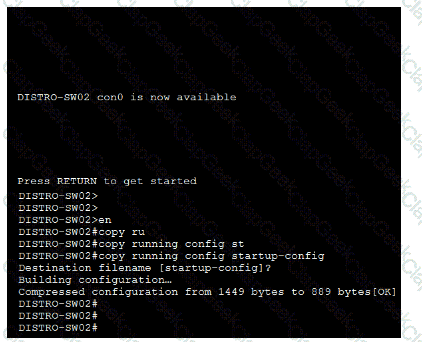

DISTRO-SW02
-
An administrator is configuring a new Cisco UCM with PSTN capabilities. Due to
bandwidth constraints, audio compression is used on the codec. DTMF must work as
expected because the customer is calling many call centers where the users must select
options in the call. Where is DTMF out-of-band in a CCM 12.5 with SIP-based gateway
configured?
Which two technical reasons make QoS a necessity in a video deployment? (Choose Two)
Refer to the exhibit. An engineer is confining class of control for a user in Cisco UCM. Which change will ensure that the user is unable to call 2143?
What describes the outcome when the trust boundary is defined at the Cisco IP phone?

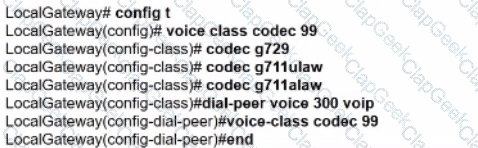

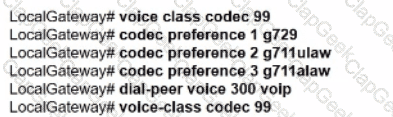

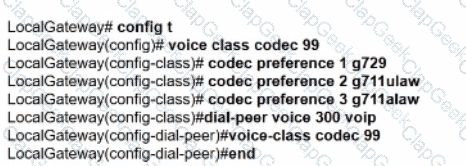

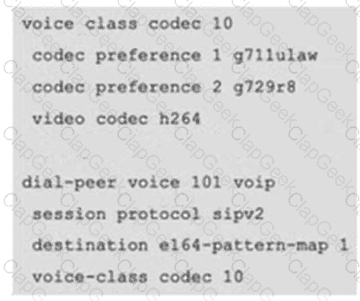

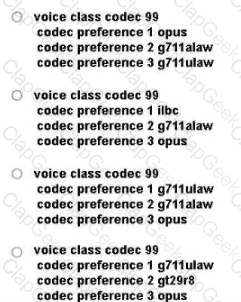

An engineer must configure codec on a Cisco Unified Border Element to prefer the G.711 ulaw and use G.711 codec as the
next The engineer logs In to the CUBE, enters the dial.peer configuration level, and runs the voice-class codec 100 command. Which set of commands completes the configuration?

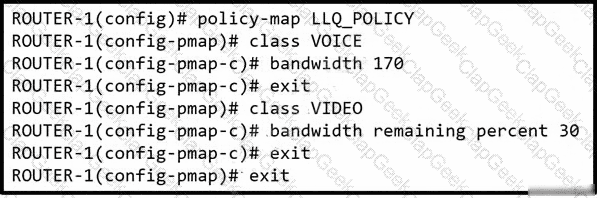

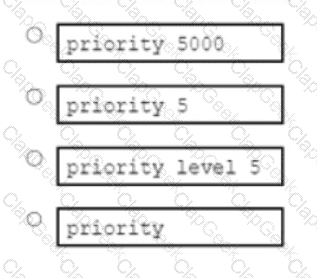

Which congestion management mechanism must be used to reduce VoIP packet drops?
Refer to the exhibit. Which codec should an engineer select for a call mode between “Dallas- REG” & “Austin-REG”?
What happens to voice packets from a Cisco 8845 IP phone in the QoS trust boundary?
An engineer configures local roule group names to simplify a dial plan. Where does the engineer set the route groups according to the local route group names that are configured?
Which two parameters influence the total number of supported conference participants on a Cisco IOS XE router that has DSP modules? (Choose two.)
SIP proxies have operations defined in RFC 3261 and supporting extensions. Though no lETF RFC completely defines how SBCs must function. SBCs evolved over the years.
Which two operations demonstrate the high-level differences between SBCs and SIP proxies? (Choose two.)
What is the purpose of Mobile and Remote Access with Cisco Jabber in the cisco UCM?

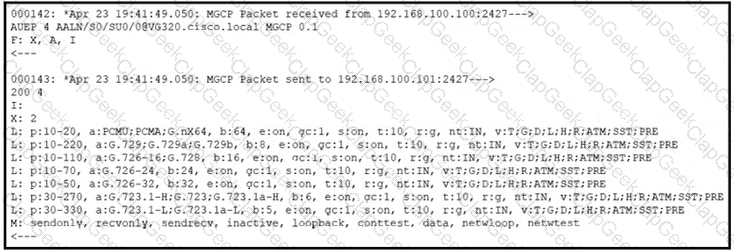

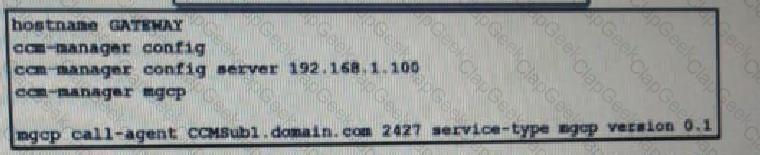

A DTMF mismatch is occurring between an MGCP gateway registered FXS port and a Cisco Unified communications Manager SIP trunk. Which media resource can be leveraged to interwork this mismatch?
Which method is used to avoid toll fraud with Cisco Unified Communications Manager calls?
Which actions required for a firewall configuration on a Mobile and Remote Access
through Cisco Expressway deployment?
When designing the capacity for a Cisco UCM 12.x cluster, an engineer must decide which VMware template will be used for each node. What is the lowest number of users supported in a template and the highest number of users in a template?
A collaboration engineer is troubleshooting issues with a T1 PRi The engineer wants to confirm if the router received an ISON Set Asynchronous Balanced Mode Extended message and responded with an Unnumbered Acknowledge frame Which Cisco OS command is used to debug ISDN Laver 2 issues?
What is a characteristic of a SIP endpoint configured in Cisco UCM with ’Use Trusted Relay Point' set to "On’?
Which two steps are required for bulk configuration transactions on the Cisco UCM database utilizing BAT? (Choose two.)
Which configuration concept allows for high-availability on IM and Presence services in a UC environment?
An administrator troubleshoots call flows and suspects that there are issues with the dial plan. Which tool enables a quick analysis of the dial plan and provides call flows of dialled digits?

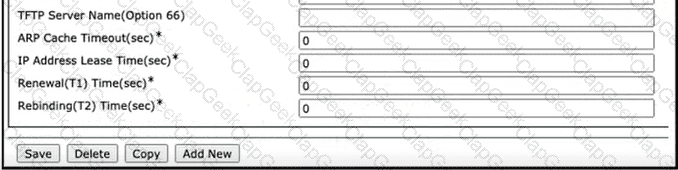

The IP phones al a customer site do not pick an IP address from the DHCP An engineer must temporarily disable LLDP on all ports of the switch to leave only CDP. Which two commands accomplish this task? (Choose two.)
What are two differences between media flow-around and media flow-through on cisco unified Border element? (Choose two.)

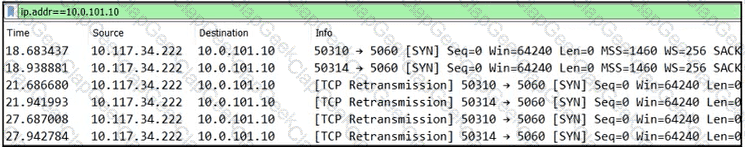

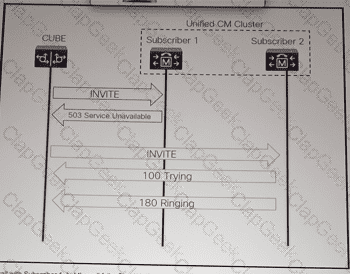

Refer to the exhibit. Cisco Unified element is attempting to establish a call with Subcribers1, but the call fails. Cisco Unified Border Element then retries the same call with Subcribers2, and the call proceeds normally.
Which action resolves the issue?
A remote office has a less-than-optimal WAN connection and experiences packet loss, delay and jitter. Which VoIP codec is used in this situation?
An administrator is in the process of moving Cisco Unity Connection mailboxes between mailbox stores. The administrator notices that some mailboxes have active Message Waiting Indicators. What happens to these mailboxes when they are moved?
What is a capability of the call forwarding feature in a Cisco Webex dial plan?

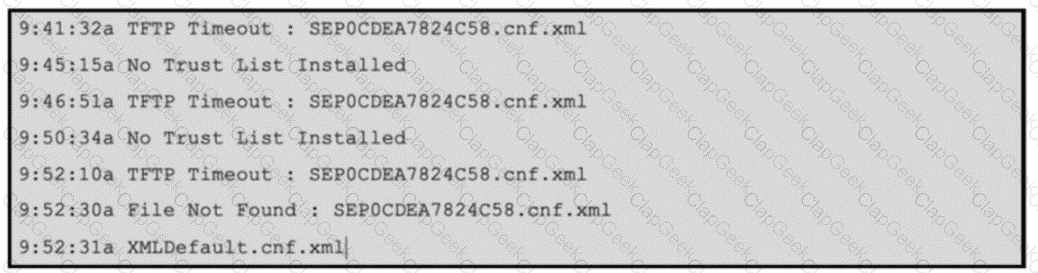

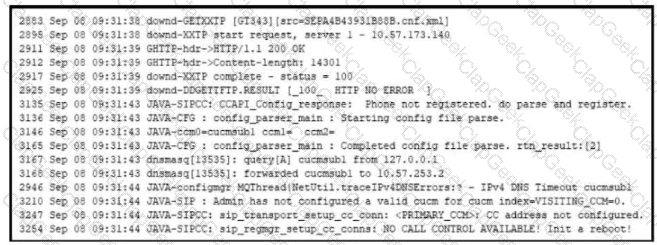

During the Cisco IP Phone registration process, the TFTP download (ails. What are two reasons (or this issue? (Choose two.)
Which location must be assigned to the SIP trunk to replicate enhanced location information via a SIP trunk?

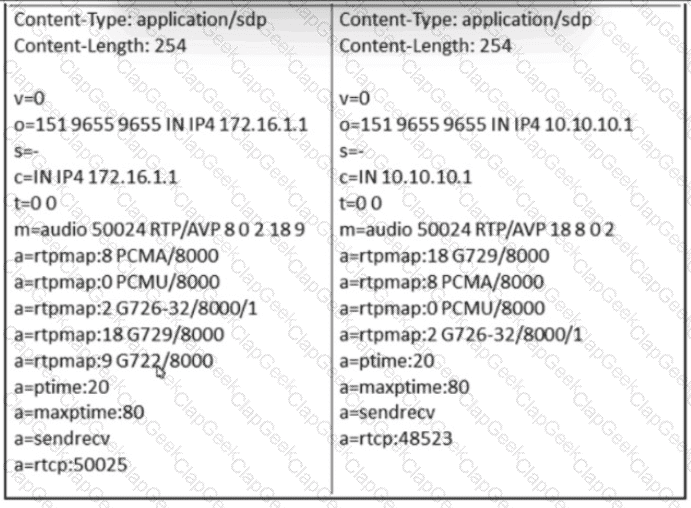

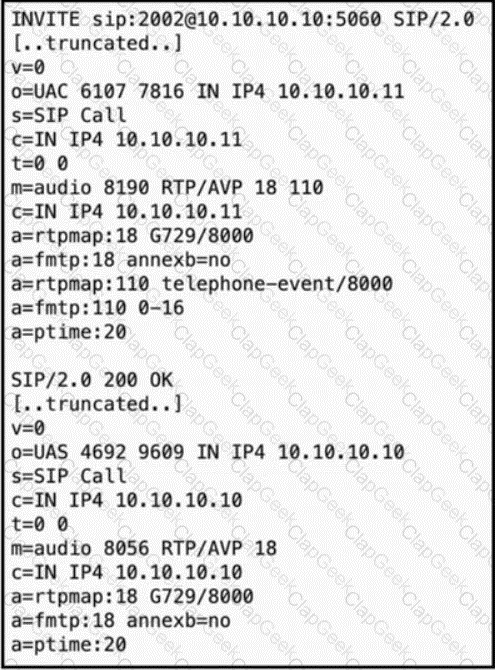

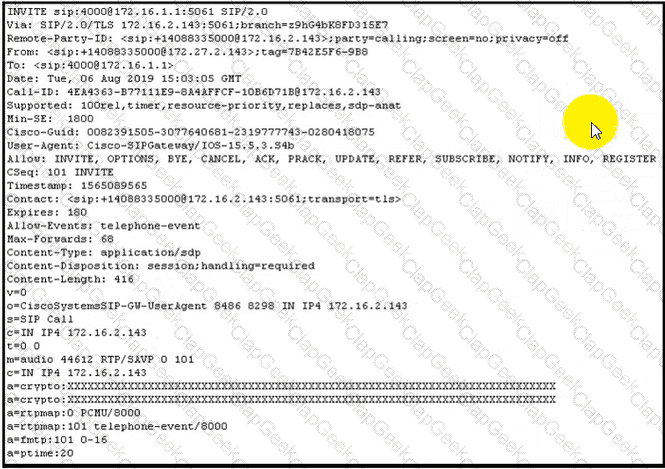

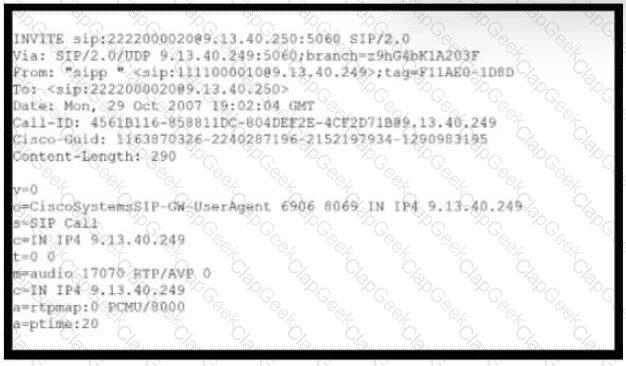

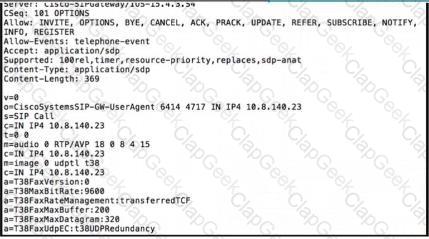

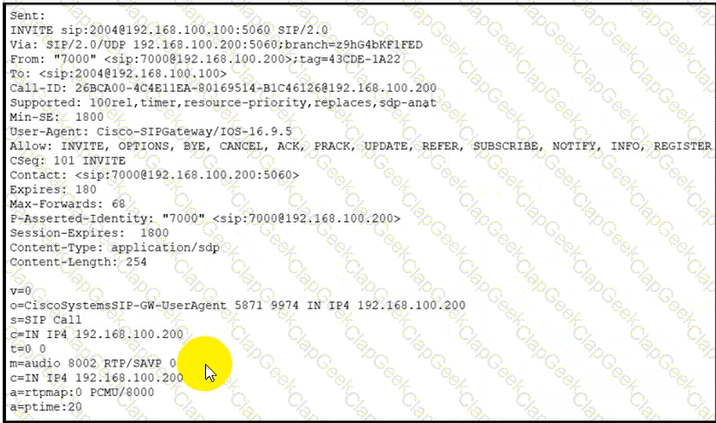

Refer to the exhibit. This INVITE is sent to an endpoint that only supports G.729. What must be done for this call to succeed?
Refer to the exhibit.

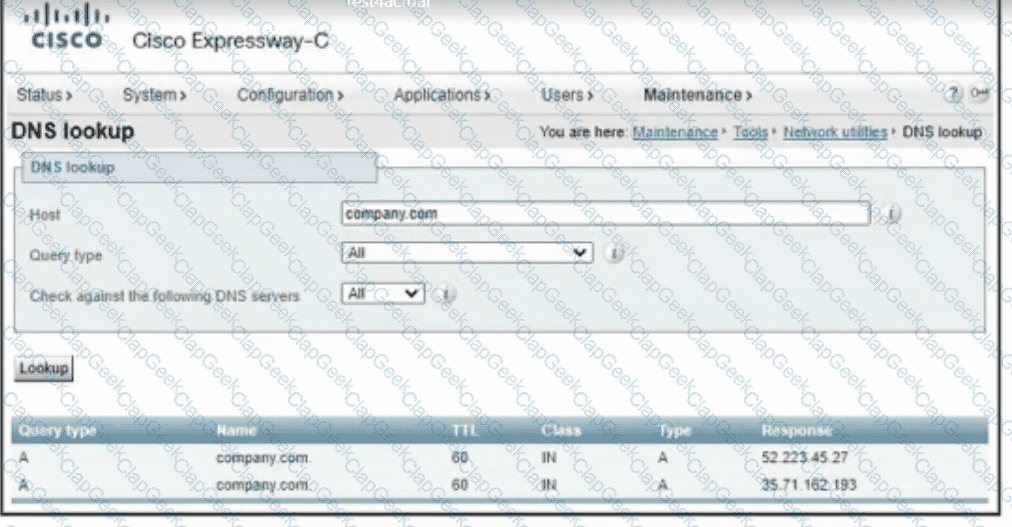

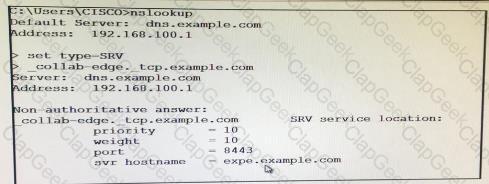

You deploy Mobile and Remote Access for Jabber and discover that Jabber for Windows does not register to cisco Unified Communications Manager while outside of the office. What is a cause of this issue?
Refer to the exhibit A call from +1 613 555 1234 that is sent out through the Nice Gateways should result in a calling party of 001 613 555 1234 with the numbering type "international' Which configuration accomplishes this goal?
A collaboration engineer troubleshoots issues with a Cisco IP Phone 7800 Series. The IPv4 address of the phone is reachable via ICMP and HTTP, and the phone is registered to Cisco UCM However the engineer cannot reach the CU of the phone Which two actions in Cisco UCM resolve the issue? (Choose two)
Which command must be defined before an administrator changes the linecode value on an ISDN T1 PRI in slot 0/2 on an IOS-XE gateway?
Users want their mobile phones to be able to access their cisco unity connection mailboxes with only having to enter their voicemail pin at the login prompt calling pilot number where should an engineer configure this feature?
In which location does an administrator look to determine which subscriber the phone registers to if loses registration with the current Cisco UCM subscriber?
Refer to the exhibit. Users at a company located In New York cannot place calls. The New York gateway is configured with a T1 ISDN PRI card with 24 channels. The engineer runs the show isdn status command and receives output. Which action must the engineer take to resolve the issue?

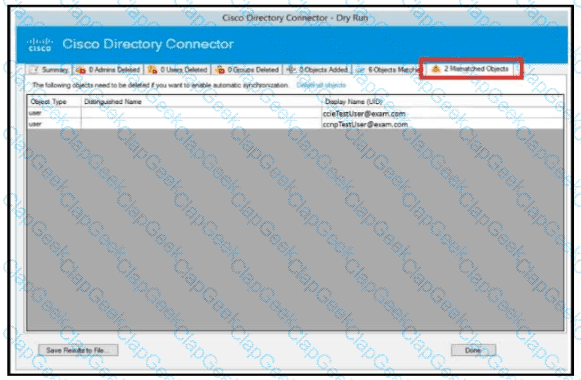

Where is Directory Connector hosted in a Cisco Webex Hybrid Services deployment?
Due to service provider restriction. Cisco UCM cannot send video in the SDR Which two options on Cisco UCM are configured to suppress video in the SDP in outgoing invites? (Choose two.)
What is the Cisco UCM sizing guidance for deployments of between 5.000 and 10,000 users or devices that use the medium Open Virtual Archive template?
A collaboration engineer is configuring the QoS trust boundary for Cisco UCM voice and video conferencing. Which two trust boundary configurations are valid? (choose two)
Which two features will access layer switches provide support providing high-quality voice and taking advantage of the full voice feature set? (Choose two.)

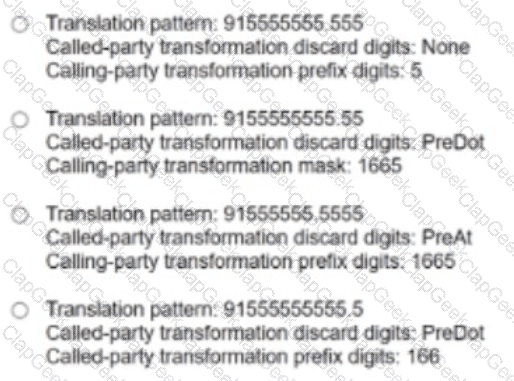

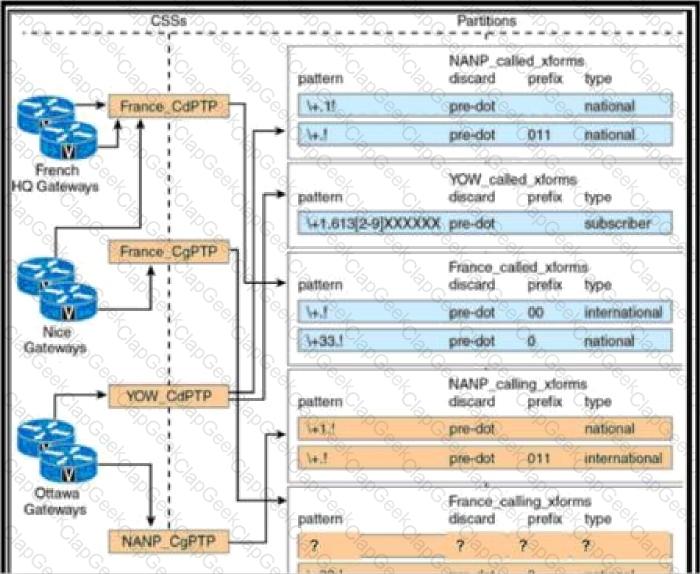

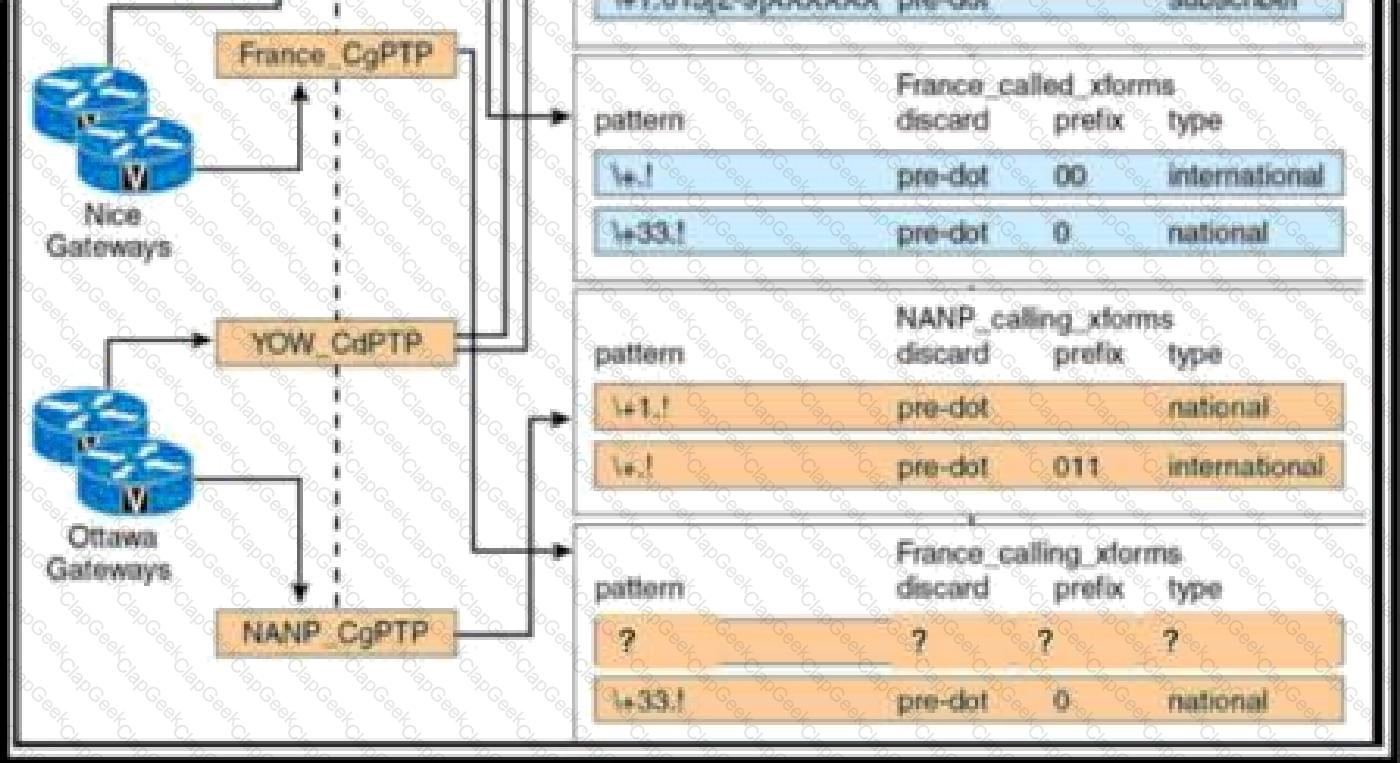

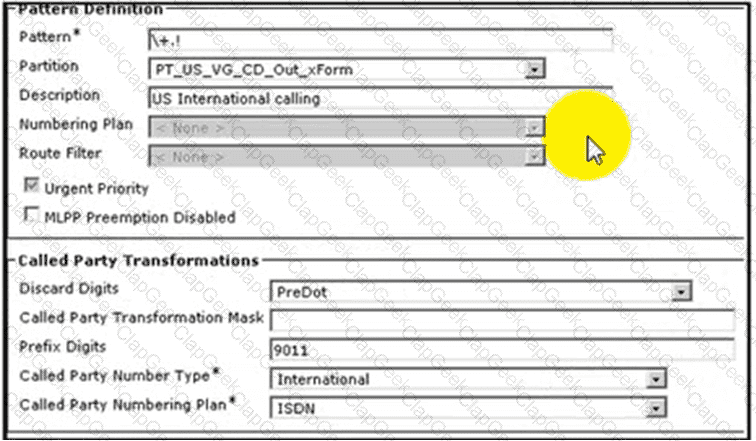

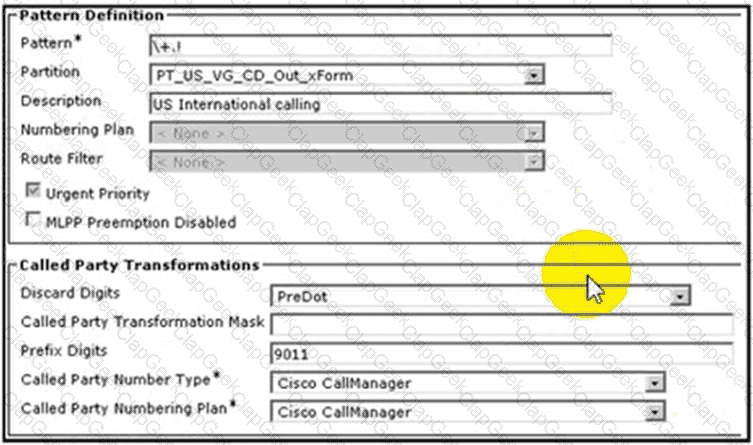

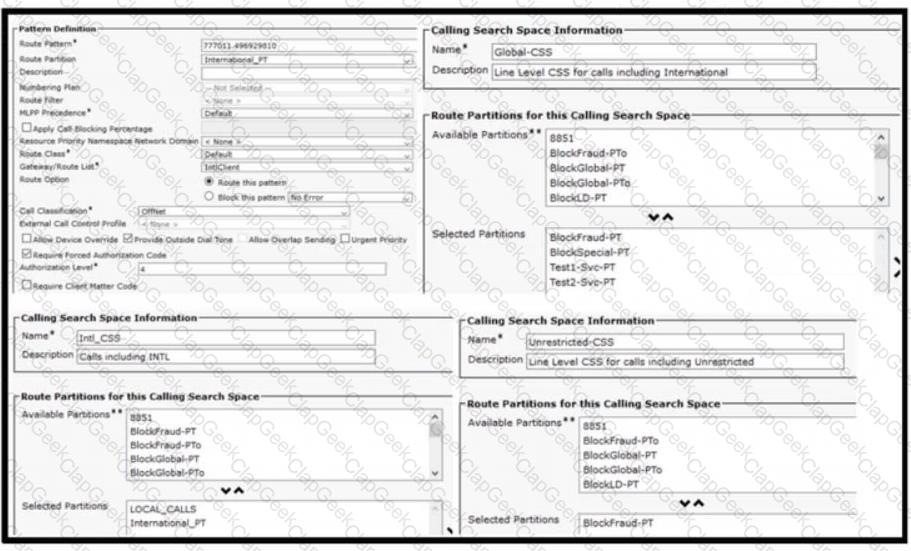

Refer to the exhibit. How must the +E.164 translation pattern be configured to reach international number 496929810?
Refer to the exhibit. Which route pattern can the Cisco UCM administrator apply to the configuration to allow calls to "1306.1316.1326,13*6.13#6” only?

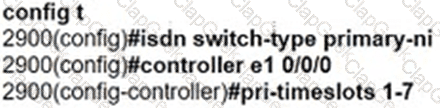

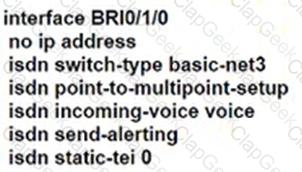

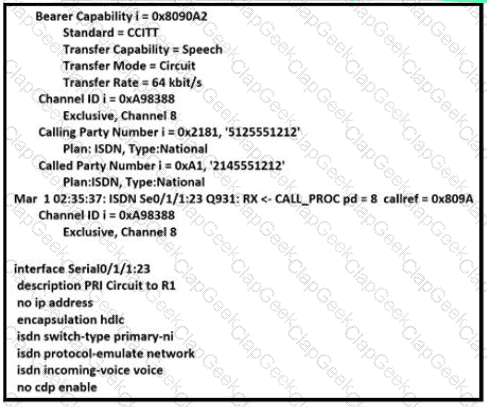

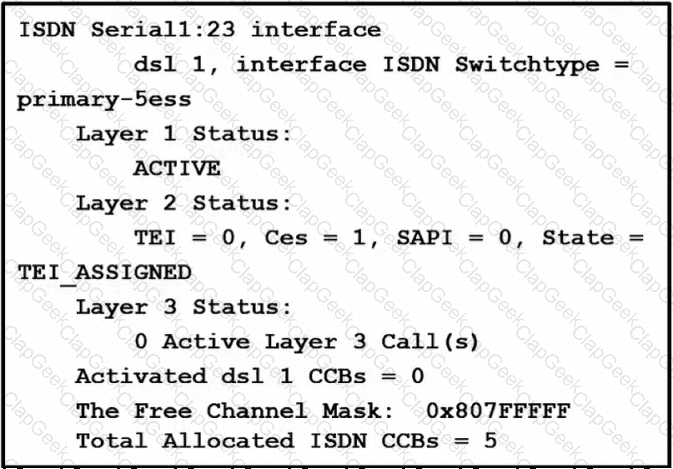

Refer to the exhibit. An engineer configures ISDN on a voice gateway. The provider confirms that the PRI is configured with 10 channels the engineer ordered and is working from the provider side, but the engineer cannot get a B-channel to carry voice. The rest of the configuration for the serial interface and voice network is functioning correctly. Which actions must be taken to carry voice?
Refer to the exhibit. What is the registration state of the analog port in this debug output?
How does an administrator make a Cisco IP phone display the last 10 digits of the calling number when the call is in the connected state, and also display the calling number in the E.164 format within call history on the phone?

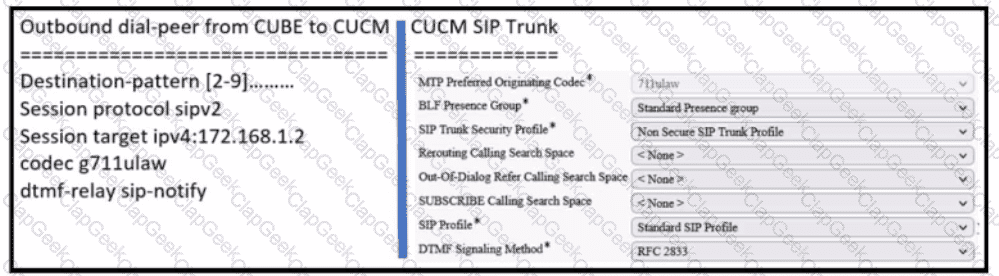

Refer to the exhibit. Calls to Cisco Unity Connection are failing across Cisco Unified Border Element when callers try to select a menu prompt Why is this happening and how is it fixed?
What is the maximum length of any phone number according to ITU recommendation E.164?
Refer to the exhibit.
A call to an international number has failed. Which action corrects this problem?
An engineer roust configure DTMF relay on a Cisco Unified Border Element by using RFC2833 as the preferred relay mechanism and KPML as the
next preferred relay mechanism. The engineer logs in to the CUBE and enters the dial-peer configuration level. Which command should be run at
dial-peer configuration level?

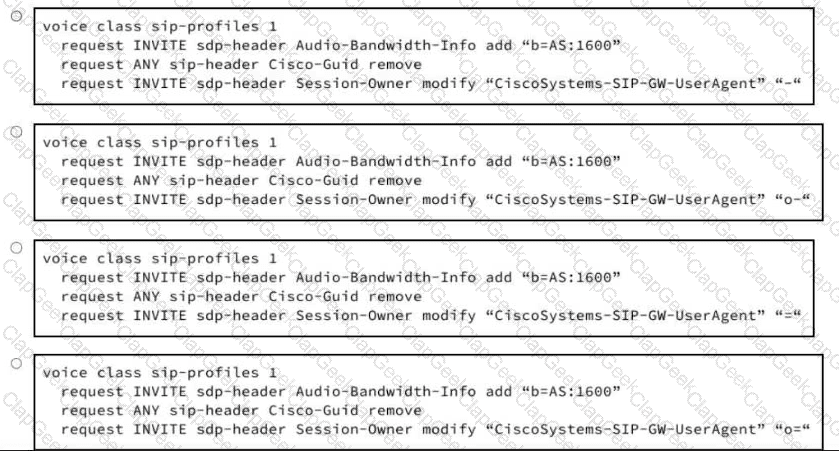

Which option must be used when configuring the Local Gateway for a Cisco Webex Calling trunk?

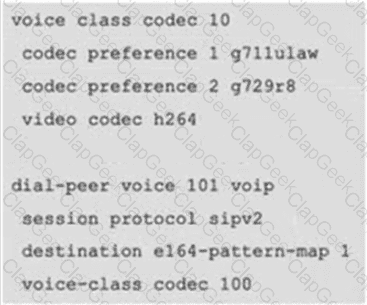

Refer to the exhibit. An engineer configures a VoIP dial peer on a Cisco gateway. Which codec is used?

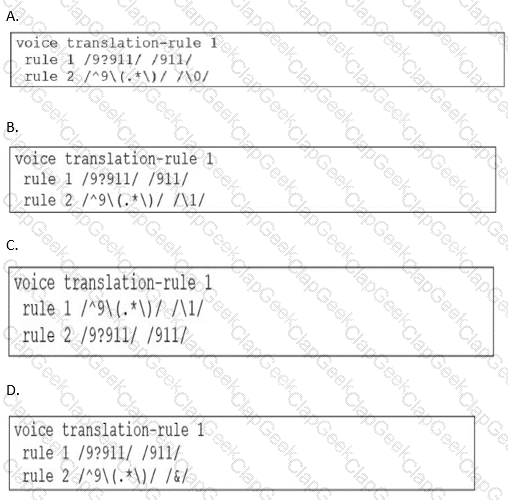

An administrator needs to stop the leading 9 from outbound calls on an IOS Voice Gateway and ensure that the system handles 911 emergency calls Which configuration is needed to accomplish this task?
