300-640 Implementing Cisco Data Center AI Infrastructure (DCAI) Questions and Answers

VXLAN EVPN provides scalable logical segmentation without requiring physically separate fabrics. Separate VXLAN Network Identifiers can isolate individual AI training projects, while Cisco's Group Policy Option adds a security group identifier to the VXLAN header and enables granular microsegmentation through security-group policies. This makes it possible to isolate tenant or project traffic while selectively allowing access to common services such as centralized storage.

Cisco specifically describes GPO as supporting microsegmentation within VXLAN EVPN fabrics and granular traffic control between application segments. This approach preserves a high-performance shared fabric, avoiding the operational complexity and resource inefficiency of constructing physically separate networks for every project. Cisco also positions VXLAN EVPN as an architecture for AI/ML environments requiring segmentation, secure multitenancy, and scalable high-throughput communication.

Option A provides strong isolation but wastes switching resources and complicates shared-storage connectivity. Option C relies on conventional VLAN boundaries and centralized router ACL enforcement, introducing scaling and potentially additional forwarding constraints. Option D confuses QoS classification with security segmentation; DSCP identifies service classes but is not a security-isolation mechanism.

Study Guide Reference: 2.1 Evaluate network deployment based on bandwidth, latency, scalability, and security.

===============

Rapid provisioning supports scalability by reducing the time required to make compute, GPU, networking, storage, and orchestration resources available for workloads. The most appropriate description is therefore the efficient launch of computational platforms . When new AI capacity can be provisioned consistently and quickly, organizations can expand training environments, increase inference capacity, respond to workload bursts, and introduce additional accelerator resources without lengthy manual configuration.

Cisco's DCAI objectives explicitly cover orchestration as a component of AI environments and require candidates to evaluate infrastructure scalability. Cisco also emphasizes that AI infrastructure must scale to accommodate changing workloads and that cloud-oriented infrastructure offers rapid access to computational resources when demand changes.

Option A introduces fragmented management, which generally increases operational complexity. Option B restricts connectivity and therefore conflicts with scalable distributed AI execution. Option C explicitly delays resource availability and is the opposite of rapid provisioning.

The architectural objective is to make infrastructure consumption repeatable and automated. Efficient provisioning allows the underlying platform to expand at the pace demanded by GPU-intensive training and production inference rather than becoming an operational bottleneck.

Study Guide Reference: 1.0 AI Fundamentals and Applications — 1.5.d Orchestration; AI infrastructure scalability concepts.

===============

The surveillance workload creates a substantial persistent-capacity requirement across every location. Even at the stated minimum of ten cameras, each store generates approximately 240 GB per day and roughly 3.36 TB over fourteen days before considering filesystem overhead, redundancy, additional cameras, or growth. A scalable IP-based shared-storage architecture is therefore the appropriate option.

Cisco Unified Edge is designed around integrated high-speed Ethernet networking and supports network-accessible storage through standard IP mechanisms. Cisco's validated Unified Edge guidance describes network storage using protocols such as NFS and iSCSI , while explicitly noting that Fibre Channel is not validated in that design. Unified Edge also supports software-defined and distributed storage architectures carried over its Ethernet infrastructure.

Fibre Channel would introduce specialized SAN adapters, switches, cabling, and operational complexity that are generally inappropriate for a cost-sensitive, highly distributed retail edge. InfiniBand is optimized for specialized high-performance computing rather than economical video retention. Local storage could hold surveillance data at each store, but the question explicitly requires a centralized storage solution and long-term capacity that can be managed across locations.

IP-based shared storage therefore provides the best combination of scalability, standardization, cost efficiency, and Unified Edge compatibility.

Study Guide Reference: AI Infrastructure Components and Architecture — edge AI storage, IP storage, scalability, capacity, and deployment requirements.

===============

Configuring an email address as a notification endpoint is not sufficient by itself. Cisco Nexus Hyperfabric requires the recipient endpoint to undergo email verification . After an email endpoint is created, Hyperfabric sends a verification code; the administrator must enter that code and confirm that the endpoint status is verified and active. An unverified address therefore causes the condition described in option B.

The endpoint must also be associated with a notification policy . Cisco documents that assertion notifications are configured by selecting one or more fabrics and one or more notification endpoints in the notification policy. If the relevant fabric and the newly created email endpoint are not paired in the policy, assertion messages are not sent to that address. This makes option C correct.

Options A and E incorrectly assume that Hyperfabric directly uses the organization's own email server. Nexus Hyperfabric provides the notification service through its controller architecture. Option D similarly does not represent the required notification configuration described by Cisco.

The correct operational workflow is therefore: create the email endpoint, complete verification, then associate the desired fabric and endpoint through the notification policy.

Study Guide Reference: AI Infrastructure Operations and Troubleshooting — Hyperfabric monitoring, assertions, notification endpoints, and notification policies.

===============

NVIDIA Collective Communications Library (NCCL) is the appropriate framework for validating communication performance between NVIDIA GPU nodes. NCCL provides highly optimized implementations of collective operations such as AllReduce, AllGather, Reduce, Broadcast, and ReduceScatter. These operations closely represent the communication patterns generated by distributed AI training and therefore provide much more meaningful validation of GPU-cluster performance than conventional network-throughput tests.

NCCL-based benchmarks can reveal whether GPU-to-GPU communication is achieving expected bandwidth and latency across NVLink, PCIe, and the external backend network. They are particularly useful when validating RoCEv2 fabrics because distributed training performance depends on collective communication efficiency rather than simple host-to-host TCP throughput.

iPerf measures conventional TCP or UDP network performance between hosts and is useful for basic network validation, but it does not exercise NVIDIA GPU collective communications. Spirent and Ixia provide sophisticated packet-generation and network-testing platforms, yet they test the network primarily from a packet-forwarding perspective rather than measuring actual GPU collective-operation behavior.

For a newly deployed NVIDIA AI cluster, NCCL benchmarking therefore provides workload-representative validation of the end-to-end GPU communication architecture and can expose problems involving topology, NIC configuration, congestion control, bandwidth imbalance, or fabric design.

Study Guide Reference: AI Infrastructure Operations and Troubleshooting — performance benchmarking, NVIDIA GPU communications, backend-fabric validation, and distributed AI workload testing.

===============

Cisco Nexus Dashboard is the appropriate platform for operating and automating Cisco Nexus-based data center fabrics while retaining an NX-OS/CLI-oriented architecture. Nexus Dashboard Fabric Controller provides centralized provisioning, configuration management, automation, templates, monitoring, and lifecycle functions for Nexus fabrics. Cisco explicitly describes NDFC as the comprehensive automation and management platform for Cisco Nexus and MDS infrastructure.

The template requirement is also directly supported. Nexus Dashboard allows policies and configuration templates to be defined centrally and deployed consistently to one or multiple fabrics. For flow visibility, Nexus Dashboard can collect fabric telemetry and reconstruct traffic paths, including packets, drops, anomalies, and flow behavior across multiple switches.

Cisco Catalyst Center—formerly DNA Center—is primarily associated with enterprise campus and access networks rather than Nexus data center AI fabrics. Intersight specializes in compute and infrastructure lifecycle management, particularly UCS. Hyperfabric provides highly automated cloud-managed networking but deliberately abstracts much of the conventional CLI-centric operational model.

Nexus Dashboard therefore best satisfies both requirements: standardized network automation and detailed fabric-flow monitoring while remaining aligned with traditional Nexus operational practices.

Study Guide Reference: AI Infrastructure Deployment and Data Management — Cisco Nexus Dashboard, fabric automation, configuration templates, and telemetry.

===============

Cisco UCS X-Series is the strongest fit because it is designed as a modular, scalable compute platform that can support conventional enterprise workloads and GPU-accelerated AI workloads within the same architectural framework. Cisco explicitly positions UCS X-Series for workload consolidation, allowing compute nodes and GPU resources to be added as requirements evolve without replacing the entire infrastructure. The platform supports substantial memory capacity, virtualization, GPU acceleration, and centralized lifecycle management through Cisco Intersight.

The current UCS X-Series portfolio supports X210c and X215c compute nodes, X580p GPU expansion, and X-Fabric connectivity. Cisco further positions the platform for AI workloads through high-bandwidth, low-latency GPU connectivity and scalable GPU and CPU configurations.

UCS M-Series is not the current strategic modular platform for these requirements. Unified Edge is optimized for distributed edge deployments rather than a large, expanding enterprise data center. A standalone C-Series deployment can provide powerful GPU servers, but it does not offer the same chassis-level composability and resource expansion model described in the scenario.

Study Guide Reference: 2.0 AI Infrastructure Components and Architecture — 2.2 Evaluate compute deployment based on CPU, GPU, memory, virtualization, scalability, redundancy, and workload requirements.

===============

VAST Data Universal Storage is the architecture explicitly associated with these requirements. Cisco's AI Data Platform documentation describes VAST's Disaggregated Shared-Everything (DASE) architecture, which separates stateless compute from persistent flash capacity so that storage performance and capacity can scale independently. This architecture is designed to eliminate conventional storage-controller bottlenecks and support extremely large AI datasets.

Cisco's AI POD with VAST architecture integrates Cisco UCS infrastructure, Cisco Intersight lifecycle management, high-performance Ethernet/RDMA networking, and VAST's all-flash storage platform. Cisco documentation also identifies UCS C225 M8 systems within VAST-based storage designs and describes the solution as optimized for high-throughput AI workloads.

GPU Direct Storage is particularly important because it reduces unnecessary CPU involvement and intermediate data copies when transferring datasets between storage and GPU memory. Combined with RDMA, this architecture can sustain the high parallel bandwidth required by large training and fine-tuning environments.

NetApp AFF and Pure Storage FlashBlade are capable enterprise storage products, but the DASE terminology uniquely identifies VAST. Local NVMe cannot provide the required exabyte-scale shared-storage architecture and would fragment datasets across individual GPU servers.

Study Guide Reference: AI Infrastructure Components and Architecture — high-performance storage, AI PODs, RDMA, scale, and shared AI data platforms.

Workload scheduling determines where and when computational jobs execute by assigning workloads to available processing resources according to resource requirements, capacity, policies, priorities, and performance objectives. In AI environments, this commonly means allocating training, fine-tuning, or inference jobs to CPUs, GPUs, GPU memory, or groups of accelerator nodes so expensive computational resources remain efficiently utilized.

Cisco's DCAI blueprint explicitly includes orchestration as an AI-environment component. Cisco material covering NVIDIA Run:ai also identifies scheduling and GPU orchestration as core AI workload-orchestration capabilities and describes infrastructure pooling and resource management designed to maximize compute efficiency. Therefore, assigning tasks to compute elements for optimized performance precisely describes workload scheduling.

Option B concerns software licensing and compliance management. Option C is monitoring or telemetry aggregation, which can inform scheduling decisions but is not scheduling itself. Option D is a backup and recovery operation.

Effective AI scheduling is particularly important because GPU resources are expensive and workloads vary significantly in duration and resource demand. A capable scheduler therefore improves accelerator utilization, reduces queueing, and coordinates workload placement across the available compute infrastructure.

Study Guide Reference: 1.0 AI Fundamentals and Applications — 1.5.d Orchestration.

===============

A rail-optimized architecture is intentionally designed so that communication among corresponding GPU ranks within a single scalable unit can remain on the rail or leaf switches. This provides single-hop forwarding and avoids unnecessary traversal through spine switches, reducing latency for collective communication.

Spines become necessary when the deployment expands beyond one scalable unit. Cisco explicitly documents that multiple scalable units can be interconnected through leaf-and-spine switching. Traffic among GPUs inside one scalable unit benefits from rail-optimized single-hop communication, whereas traffic between GPUs located in different scalable units traverses the spine layer.

Therefore, option C precisely describes when spine switches provide architectural value: scaling the AI fabric beyond the boundaries of one scalable unit .

Option A is inaccurate because the rail design already provides the required local GPU bandwidth within the scalable unit; adding spines is not primarily intended to increase local rail bandwidth. Option B mischaracterizes the principal design purpose. Although additional topology can contribute to resiliency, spines are introduced fundamentally for interconnecting scalable units and enabling scale-out. Option D is also incorrect because increased buffering is not the architectural reason for introducing a spine tier.

Study Guide Reference: AI Infrastructure Components and Architecture — rail-optimized topology, scalable units, nonblocking network design, latency, and horizontal scaling.

===============

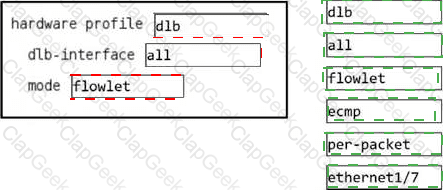

Cisco Nexus 9000 integration with NVIDIA adaptive-routing capabilities requires the Nexus switch to enable the Spectrum-X hardware profile . Cisco's current NX-OS configuration guide explicitly specifies the global configuration command hardware profile spectrum-x to enable NVIDIA Spectrum-X adaptive routing. When a Nexus switch peers with a supported NVIDIA NIC, this capability allows the NIC to handle packet reordering created by granular techniques such as per-packet Dynamic Load Balancing.

This is particularly important for AI training because large synchronized RDMA flows can create uneven utilization under conventional hash-based ECMP. Cisco explains that per-packet DLB can spray packets over multiple paths and that NVIDIA adaptive routing/direct data placement enables the receiver to correctly handle packets that arrive out of order, improving utilization and collective-operation performance.

Option A is not the documented NX-OS configuration syntax. Option B is not the Cisco-prescribed Nexus integration command. Option D may be relevant to traffic classification in other designs but does not activate Spectrum-X adaptive-routing interoperability.

Therefore, the Cisco-documented configuration is C. This differs from the supplied file's marked answer B.

Study Guide Reference: 3.0 AI Infrastructure Deployment and Data Management — 3.1.d Load distribution.

===============

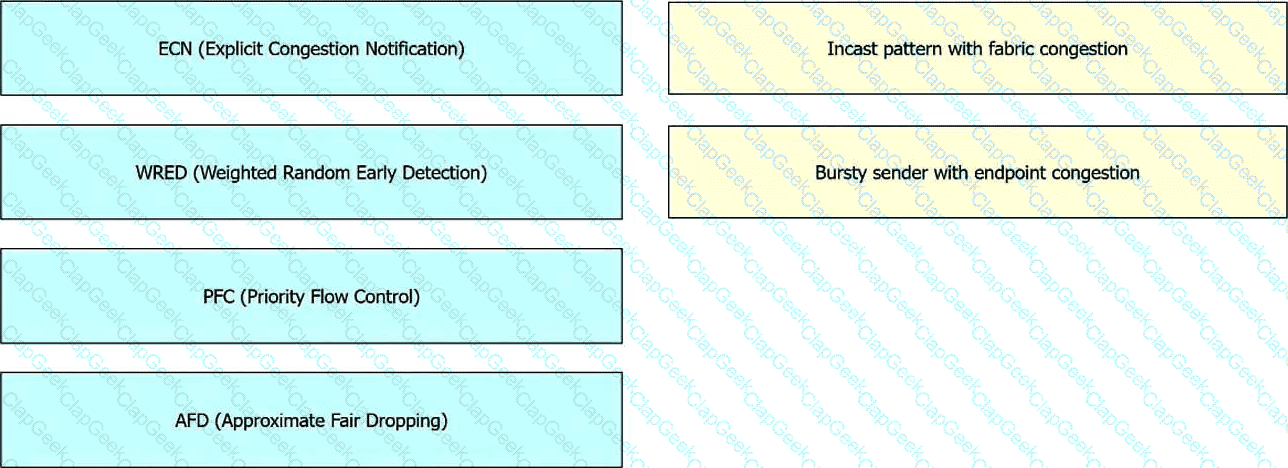

ECN (Explicit Congestion Notification)

PFC (Priority Flow Control)

ECN and PFC address different congestion conditions in a RoCEv2 fabric and are intended to complement rather than replace each other. ECN is the appropriate mechanism for fabric-level congestion generated by incast patterns. When several GPU or storage senders simultaneously transmit toward the same destination, switch queues begin to build. ECN-capable switches mark packets rather than immediately dropping them, allowing the receiving endpoint to generate congestion feedback so the transmitting source can reduce its sending rate.

PFC provides hop-by-hop loss prevention for the designated lossless Ethernet priority. When an endpoint or downstream interface cannot accept a burst quickly enough and a queue approaches its configured threshold, PFC transmits pause frames for that specific priority. This temporarily stops upstream transmission and prevents packet loss.

Cisco's RoCEv2 designs combine ECN and PFC precisely because ECN provides proactive end-to-end congestion management while PFC acts as the protective mechanism when queue buildup becomes severe or occurs faster than endpoint rate adaptation can respond.

WRED can provide the queue-marking mechanism associated with ECN, but the requested logical congestion-control mechanism is ECN. AFD is not the corresponding RoCEv2 lossless mechanism for either description.

Study Guide Reference: AI Infrastructure Deployment and Data Management — congestion control, RoCEv2, ECN, PFC, QoS, and lossless Ethernet.

===============

NVMe over RoCE uses Remote Direct Memory Access over Converged Ethernet and can employ Priority Flow Control (PFC) to provide lossless behavior between directly connected Ethernet devices. PFC is a link-level IEEE 802.1Qbb mechanism: a congested interface can transmit pause frames for a specific priority to its directly connected upstream peer. This allows the RoCE traffic class to pause without stopping unrelated Ethernet classes.

Cisco's current Intersight guidance for NVMe over RoCEv2 explicitly requires a consistent no-drop class across the network. Cisco recommends enabling the Platinum QoS class, disabling packet drops for that class, and using jumbo MTU values for NVMe/RoCE traffic.

NVMe/TCP and iSCSI operate over conventional TCP/IP. TCP provides end-to-end transport reliability and congestion control, but these protocols do not depend on PFC-based lossless Ethernet between adjacent devices. Fibre Channel has its own native credit-based flow-control mechanisms, but it is not an IP-based storage transport, eliminating option D.

The key distinction is therefore the combination of IP transport, RDMA, and Ethernet priority-based link flow control , which identifies NVMe/RoCE.

Study Guide Reference: AI Infrastructure Components and Architecture — storage technologies including NVMe; high-performance storage networking and RoCE.

===============

Inference is the operational phase in which a trained AI model receives new input and produces predictions, classifications, generated content, or other decisions. Cisco explicitly identifies Inference as an AI/ML workload type in DCAI objective 1.1.c. Unlike model training, which is dominated by iterative computation over large datasets, inference commonly handles production requests and is highly sensitive to response latency and throughput.

Cisco's AI POD design guidance states that inferencing workloads process live production traffic, often in real time, and evaluates them using metrics such as Time-to-First-Token, end-to-end request latency, inter-token latency, and requests per second. These characteristics directly support real-time decision making , making option C correct.

Option A concerns storage architecture rather than inference behavior. Option B incorrectly describes model architecture simplification, which inference does not inherently perform. Option D is also incorrect because inference pipelines can still require preprocessing, normalization, tokenization, or transformation of incoming data.

Study Guide Reference: 1.0 AI Fundamentals and Applications — 1.1 AI/ML workload types — 1.1.c Inference.

===============

A high-performance Cisco UCS architecture normally uses redundant fabric interconnects to provide both high availability and aggregated bandwidth. Cisco documentation describes Fabric Interconnects as typically deployed as a pair, integrating UCS components into a highly available management and connectivity domain. Modern UCS X-Series connectivity can provide up to 200 Gbps aggregate unified-fabric bandwidth per compute node through dual 100-Gbps paths.

Option D therefore aligns with UCS architecture: dual fabrics eliminate the single point of failure associated with one Fabric Interconnect, while 100-Gbps connectivity supports high-throughput AI inference workloads. Port channels on uplinks provide bandwidth aggregation and link-level resiliency toward the upstream data center network.

Option A incorrectly limits the Fabric Interconnect to management traffic; UCS unified fabric carries production Ethernet, storage, and management-related connectivity. Option B bypasses the integrated UCS fabric architecture and unnecessarily separates management onto Catalyst infrastructure. Option C introduces both a single point of failure and a severe bandwidth constraint by using one FI and 10-Gbps links.

For AI inference, where throughput and deterministic latency directly influence application performance, redundant high-speed fabric design is the appropriate implementation.

Study Guide Reference: 3.0 AI Infrastructure Deployment and Data Management — 3.2 Configure high-performance compute and storage using Cisco UCS; 3.2.d LAN connectivity and vNIC policies.

===============
